Product Description

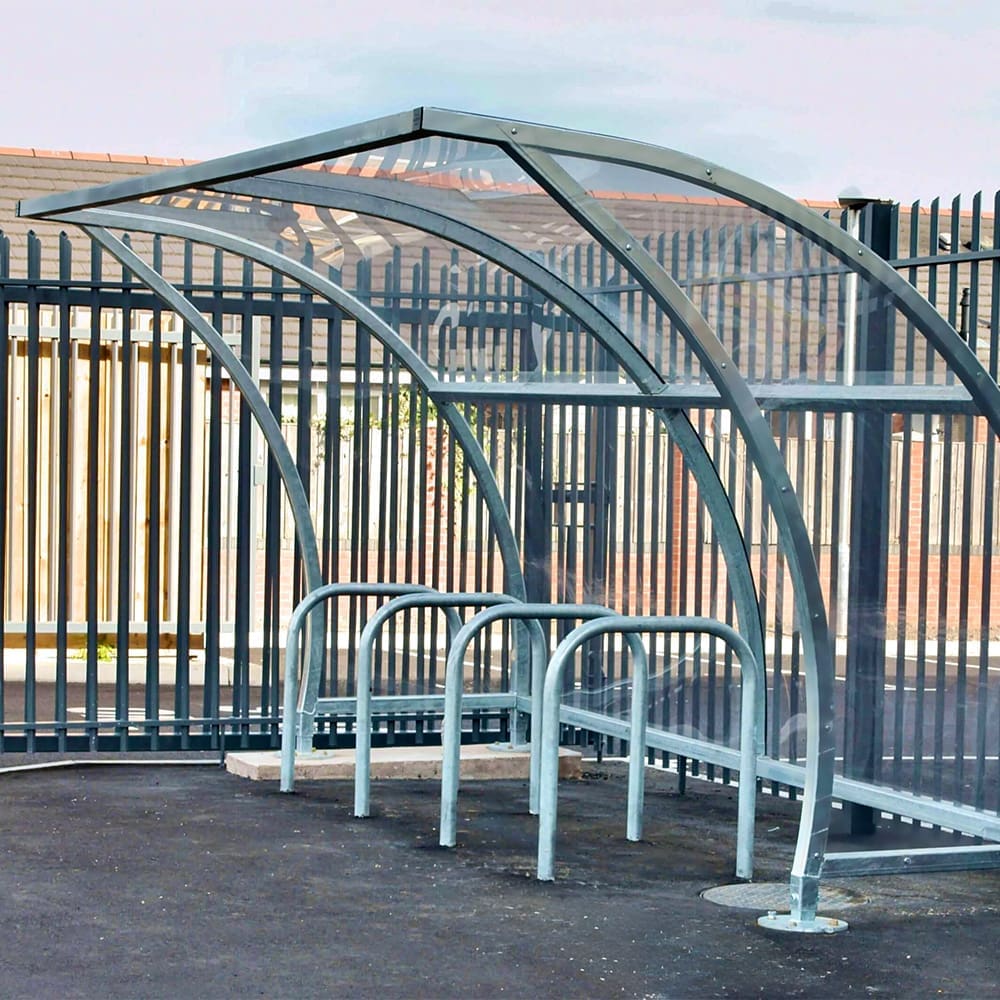

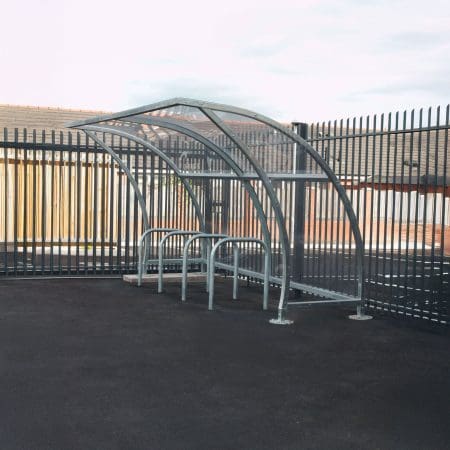

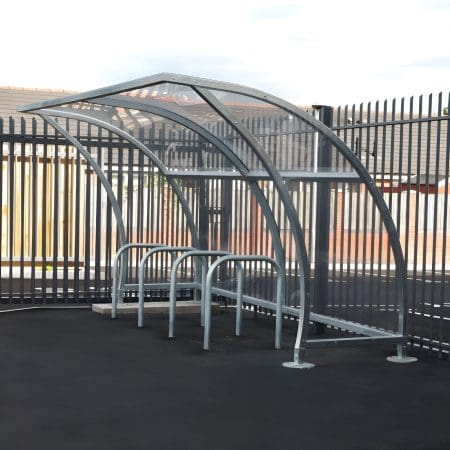

10 Space Moon Cycle Shelter
The 10 Space Moon Cycle Shelter is a practical and budget-conscious solution for secure, weather-resistant bike storage. Manufactured in the UK using hot-dipped galvanised steel, the shelter is fitted with clear polycarbonate panels that are fire-resistant and anti-vandal, ensuring long-lasting protection in even the most demanding environments. This shelter is ideal for schools, commercial premises, housing developments, and transport hubs. It supports compliance with BREEAM and Secured by Design standards, making it a go-to choice for architects, contractors, and public sector specifiers.
Applications
- Schools & Universities
- Commercial Offices & Business Parks
- Housing Developments
- Public Realm Projects
- Train Stations & Transport Hubs
Downloads & Technical Documents
We’ve created this shelter to make specifying easy. All downloadable specs, with detailed CAD packages to integrate into your project workflow, are available below.

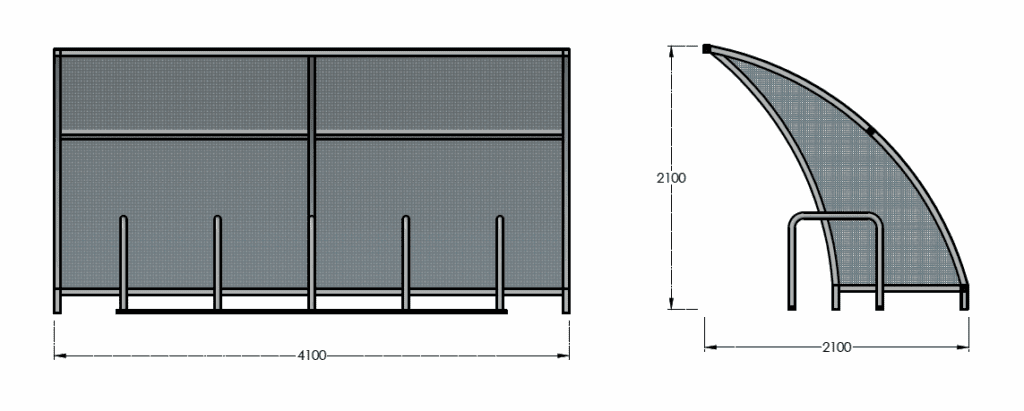

Dimensions
10 Space Moon Cycle Shelter
Width: 4100mm x Depth: 2100mm x Height: 2100mm (Bespoke Upon Request)
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 10 bicycles |
| Dimensions (mm) | 4100 (W) x 2100 (D) x 2100 (H) |
| Frame Material | Mild steel, hot-dip galvanised to BS EN ISO 1461:2022 |
| Finish Options | Galvanised only or powder-coated to any RAL colour |
| Roof & Panels | Fire-resistant, anti-climb clear polycarbonate |
| Infill Panels | End panels in polycarbonate as standard |
| Toastrack | 5-hoop galvanised bike rack included |
| Accessories | Helmet lockers, PIR solar lighting, access control (optional) |
| Installation | Installation is available nationwide but not required – supply-only orders are welcome. |
| Warranty | 10 years (manufacturer’s defects) |
Why Choose the Moon Cycle Shelter?
The Moon Cycle Shelter is a cost-effective bike storage solution for locations where durability, safety and design compliance are essential. Its anti-vandal polycarbonate roof deters climbing and tampering, while the galvanised steel structure ensures long-term resistance to the elements. Its modular design is ideal for sites requiring a capacity increase over time.
The shelter also complied with BREEAM sustainability standards and Secred by Design guidance, making it easier for architects and specifiers to include it in planning submissions or building regulations packages.
Designed & Installed Nationwide
From early-stage consultation and layout plans to on-site installation, we deliver end-to-end project support. Whether you’re designing for a school or a multi-phase commercial development, the Moon Shelter offers an efficient, compliant, and great-value solution.
Frequently Asked Questions
Here are answers to common specification and compliance questions regarding the 10 Space Moon Cycle Shelter.
What makes the Moon Cycle Shelter suitable for public realm projects?
The Moon Cycle Shelter features a distinctive curved design that enhances visual appeal while maintaining structural robustness. Its architectural profile makes it particularly well-suited to public realm schemes, town centres, transport interchanges and developments where aesthetics are a key consideration.
Is the structure engineered for long-term durability?
Yes. The Moon Cycle Shelter is manufactured using high-quality steel and protective finishes designed for long-term external use. It is engineered to withstand typical UK weather conditions, including wind and rainfall, ensuring dependable performance in exposed locations.
Can the shelter configuration be adapted to suit site constraints?
Yes. The 10 Space Moon Cycle Shelter can be configured to accommodate different rack types and layouts depending on available space and access requirements. Our team can provide layout drawings to optimise capacity while maintaining safe circulation.
Does the Moon Cycle Shelter contribute towards sustainable transport objectives?
By providing covered and accessible cycle parking, the Moon Cycle Shelter supports sustainable transport strategies within residential, commercial and public-sector developments. It can form part of a wider approach to meeting planning and environmental targets.
Are technical specifications and CAD drawings available?
CAD drawings, technical details and specification guidance are available to support architects and contractors throughout the design and tender process. Site surveys can also be arranged to confirm installation requirements prior to manufacture.
What warranty is provided?
The 10 Space Moon Cycle Shelter is backed by a 10-year manufacturing defects warranty, offering long-term assurance for developers, contractors and facilities managers.
