Product Description

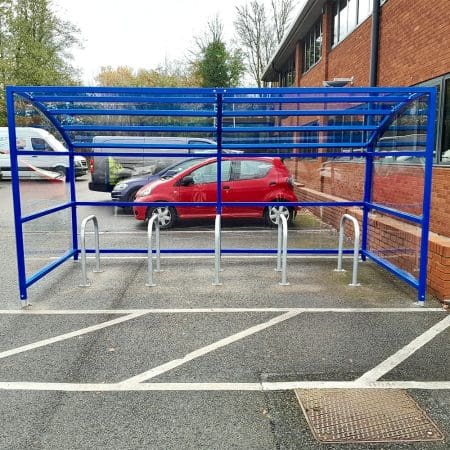

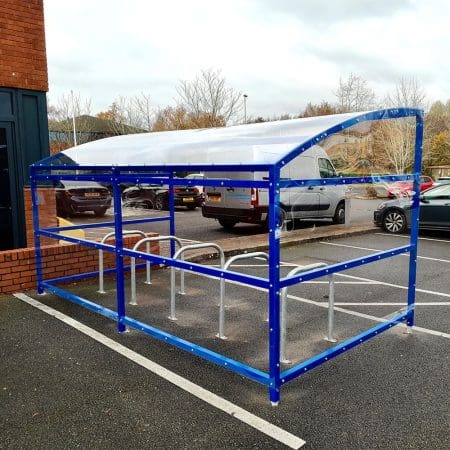

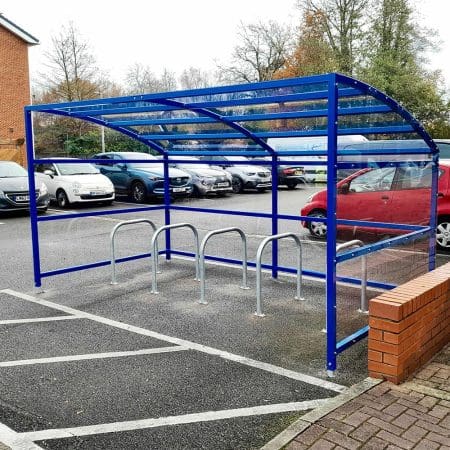

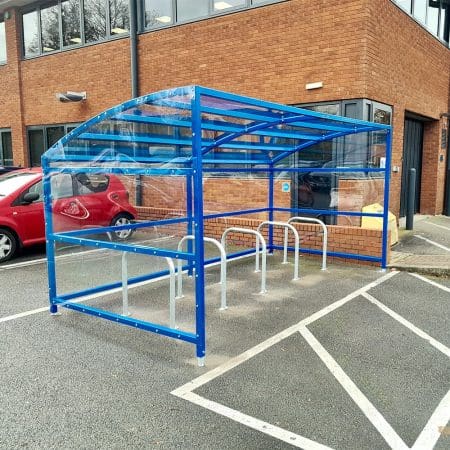

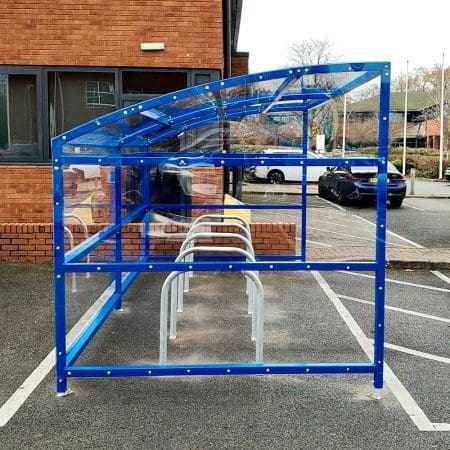

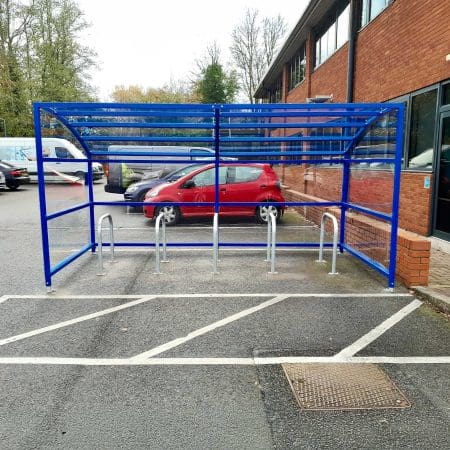

10 Space Oxford Cycle Shelter
Designed with both function and form in mind, the 10 Space Oxford Cycle Shelter is a professional-grade bike shelter ideal for contemporary construction projects. Its modular steel frame is hot-dipped galvanised to BS EN ISO 1461:2022, delivering lasting durability and resistance to the elements, all while allowing full customisation in finish and layout. Clad in anti-vandal clear polycarbonate and fitted with a five-hoop toastrack, this cycle shelter secures up to 10 bicycles by frame and wheel. Optional side panels, access gates, and PIR-activated solar lighting make it easy to meet both user safety needs and planning requirements.
We understand that bike storage is more than utility; it extends your design vision. That’s why the Oxford Shelter offers full customisation in colour, layout, and access control options. Whether you’re specifying for a commercial building campus, housing development or a BREEAM-compliant site, the Oxford Shelter offers a refined, specification-ready solution backed by a 10-year manufacturer’s warranty and UK-wide delivery and installation.
Need a larger model? Explore our 20 Space Oxford Cycle Shelter for higher-capacity sites.
Applications
- Schools & Universities
- Commercial Offices
- Housing Developments
- Healthcare Estates
- Council-Led Infrastructure Projects
- Private Developments Seeking BREEAM Credits
Downloads & Technical Documents
We’ve created this shelter to make specifying easy. All downloadable specs, with detailed CAD packages to integrate into your project workflow, are available below.

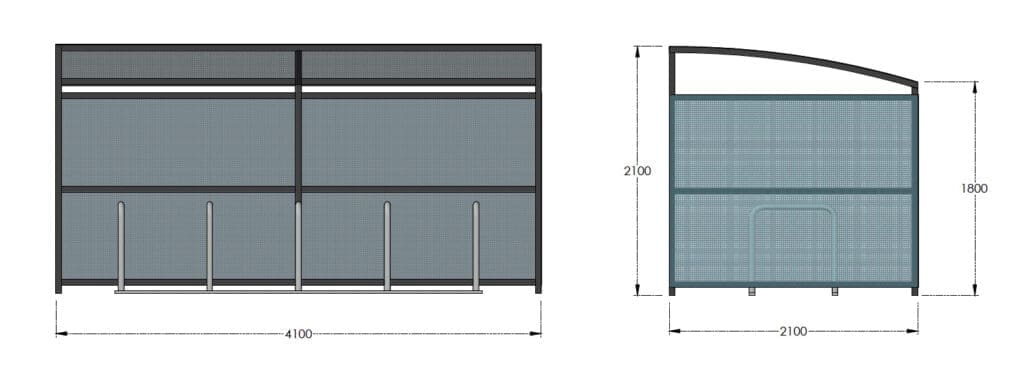

Dimensions
10 Space Oxford Cycle Shelter
Width: 4100mm x Depth: 2100mm x Height: 2100mm (Bespoke Upon Request)
| Specification | Details |
|---|---|
| Capacity | 10 bicycles |
| Dimensions | 4100mm (W) x 2100mm (D) x 2100mm (H) |
| Material | Mild steel, hot-dipped galvanised to BS EN ISO 1461:2022 |
| Finish Options | Galvanised or powder-coated to any RAL colour |
| Cladding | 3mm clear anti-vandal polycarbonate (roof and rear) |
| Infill Panels | Optional side panels in 10 Gauge Mesh, 358 Mesh or Twin Wire Mesh |
| Gates | Optional swing or sliding gates for full enclosure |
| Cycle Racks | Five-hoop galvanised toastrack included |
| Lighting Options | PIR solar lighting (optional) |

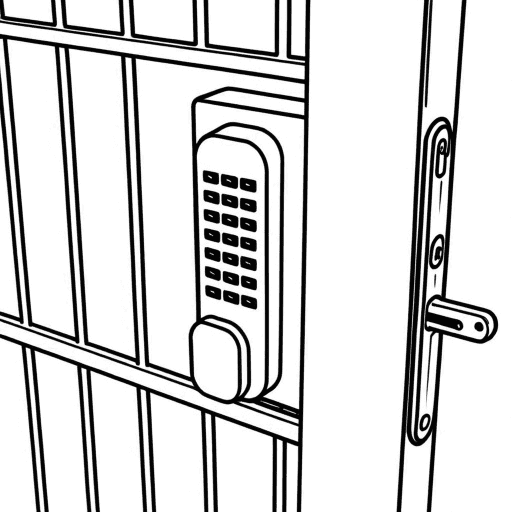

| Access Control | Optional electronic swipe/fob/card reader systems |
| Fixings | Available with underground or overground mounting options |
| Compliance | BREEAM and Secured by Design are compatible |
| Made In | United Kingdom |
| Installation | Installation is available nationwide but not required – supply-only orders are welcome. |
| Warranty | 10 years manufacturer’s warranty |
Installation Services & Support
We offer free site surveys, layout consultations, and full nationwide delivery and installation services. Our experienced team will work closely with you to ensure the shelter integrates seamlessly into your site.
Why Choose Us?
- Experts in commercial bike storage solutions for architects and contractors
- Competitve pricing and quantity discounts
- Trusted by contractors across London and the UK
- Wide range of freestanding bike racks, vertical bike storage, and secure bicycle lockers
- Committed to supporting sustainable transport infrastructure
Ready to Specify or Need Advice?
You can buy online now, request a quote for bulk pricing, or speak to our team for custom design options. We’re here to help. Download all specs above or speak directly to our team about tailoring this shelter to your project. Whether you need a bespoke bike shelter layout or want to meet planning compliance, we have the experience and product range to deliver.
Frequently Asked Questions
Here are answers to common specification and compliance questions regarding the 10 Space Oxford Cycle Shelter.
Is the Oxford Cycle Shelter suitable for heritage or sensitive sites?
The Oxford Cycle Shelter features a simple, understated design that integrates well into both contemporary and more traditional environments. Its clean lines and adaptable finishes make it appropriate for developments where visual impact must be carefully managed.
Can the shelter be configured to meet specific capacity requirements?
Yes. The 10 Space Oxford Cycle Shelter can be extended in length or configured with different rack systems depending on project requirements. Layout drawings can be provided to ensure appropriate spacing, accessibility and circulation.
Does the Oxford Cycle Shelter support sustainable transport objectives?
By providing covered and accessible cycle parking, the Oxford Cycle Shelter supports planning policies that encourage active travel. It can form part of a compliant cycle storage strategy within residential, commercial and public sector developments.
What installation requirements should be considered?
The shelter is typically installed onto a concrete base or structurally suitable hardstanding. Ground conditions and site layout will influence final fixing specifications. Detailed technical drawings and installation guidance are available to support contractors.
Are technical specifications and CAD files available?
Yes. CAD drawings, technical details and layout plans are available to assist architects and specifiers during the design and tender stages. Site surveys can also be arranged where required.
What warranty is provided?
The 10 Space Oxford Cycle Shelter is backed by a 10-year manufacturing defects warranty, providing long-term confidence for developers and facilities managers.
