Product Description

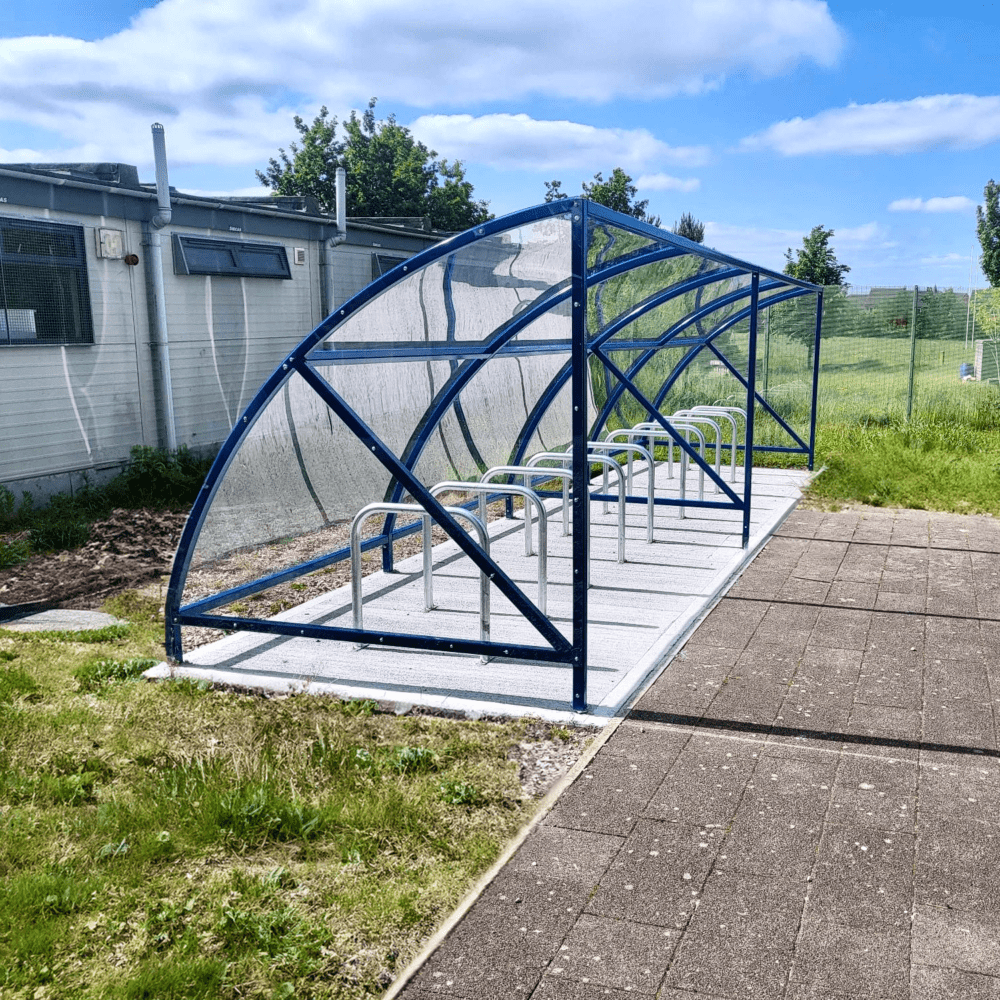

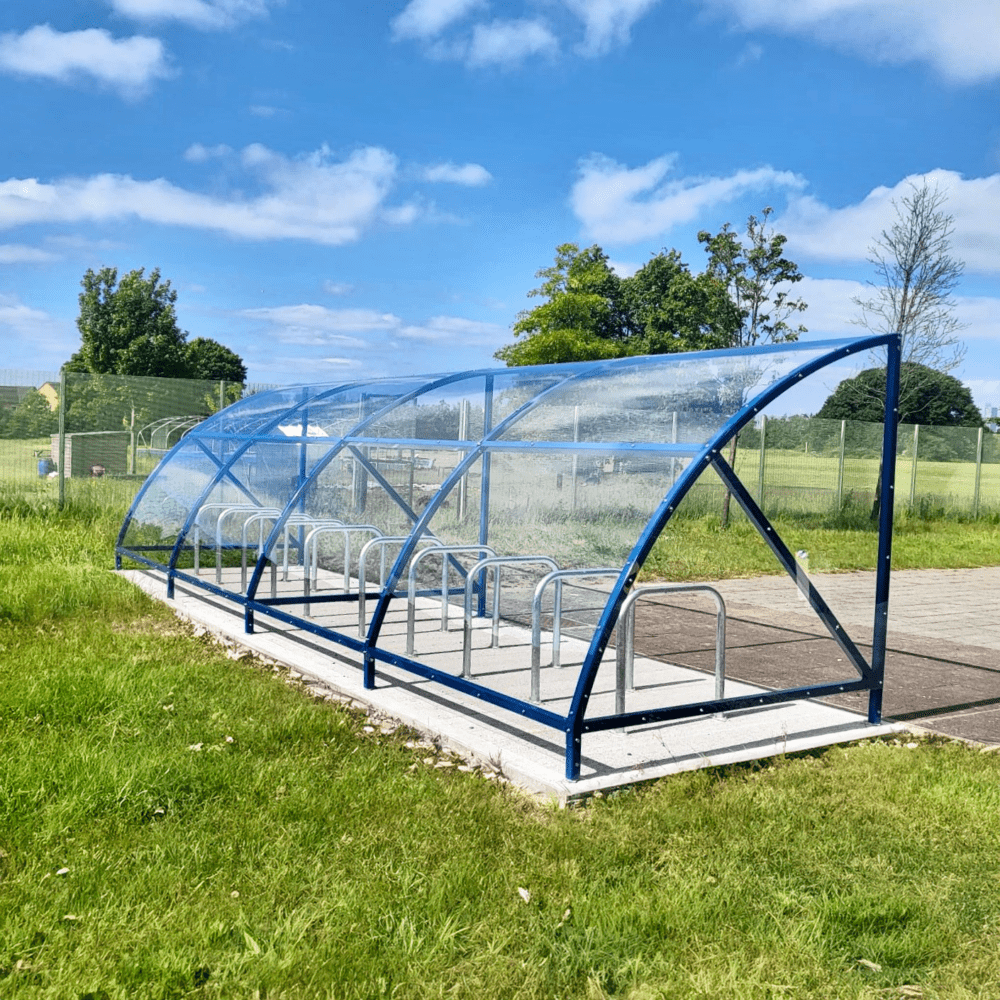

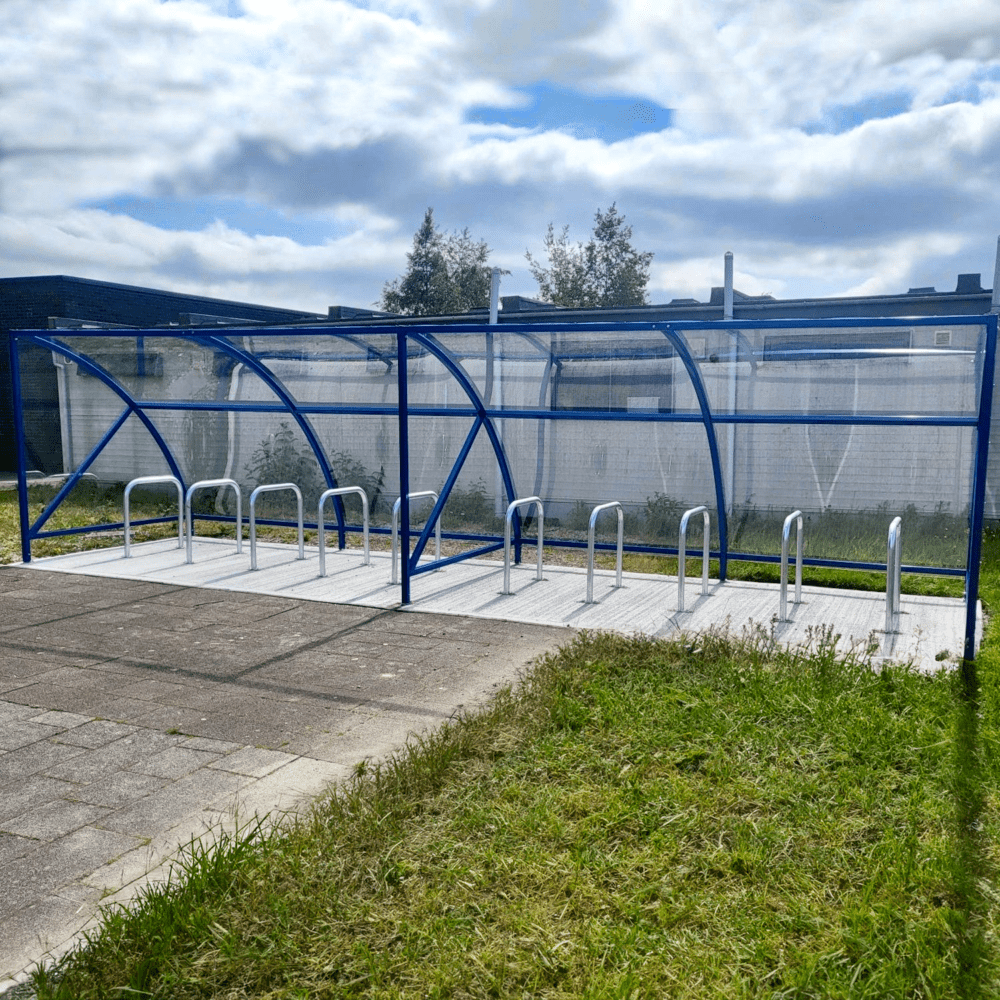

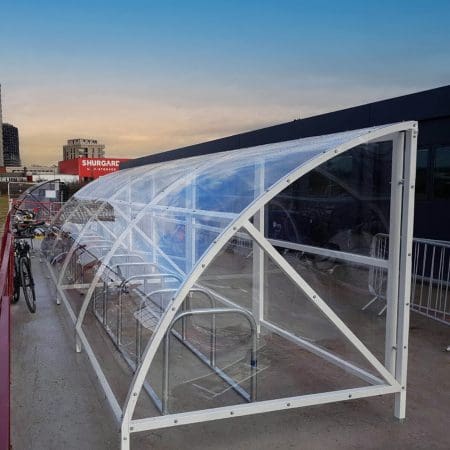

20 Space Original Cycle Shelter
The 20 Space Original Cycle Shelter is a durable, compliant, and cost-effective solution for large-scale developments in need of secure, weatherproof cycle storage. Manufactured in the UK from hot-dipped galvanised steel and fitted with UV-stable polycarbonate roof panels, this shelter is engineered for long-term use in commercial, educational, and public environments.
Supplied as standard with a 10-hoop toastrack, the Original Shelter provides secure parking for up to 20 bikes. Its modular format means it can be extended to meet growing demand or site-specific requirements with ease.
Designed to align with BREEAM standards and Secured by Design guidance, the shelter can be tailored with a wide range of optional features — including access control, PIR solar lighting, helmet lockers, gates, and custom powder-coated finishes. This makes it the ideal specification for architects, developers, and contractors seeking future-proofed cycle infrastructure that meets planning and sustainability targets.
Optional Add-ons
The Original Cycle Shelter can be upgraded with the following to suit your environment and specification:

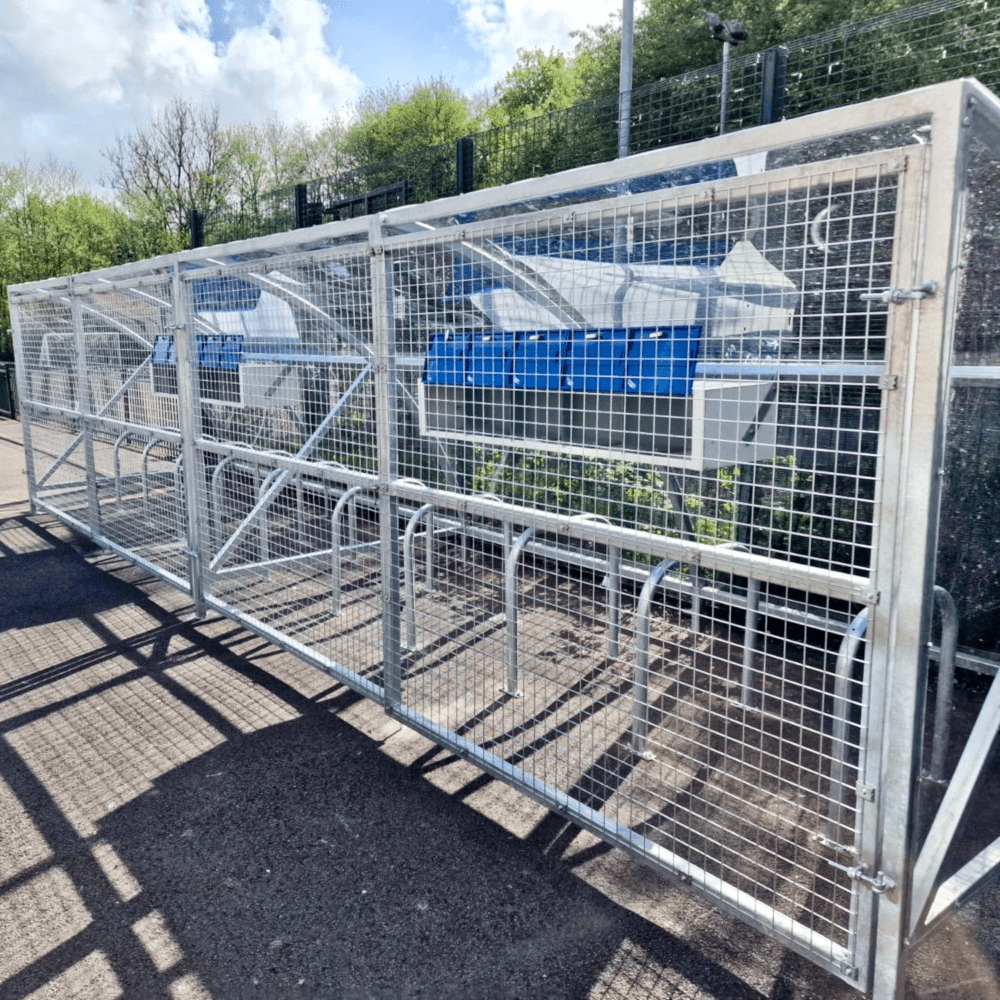

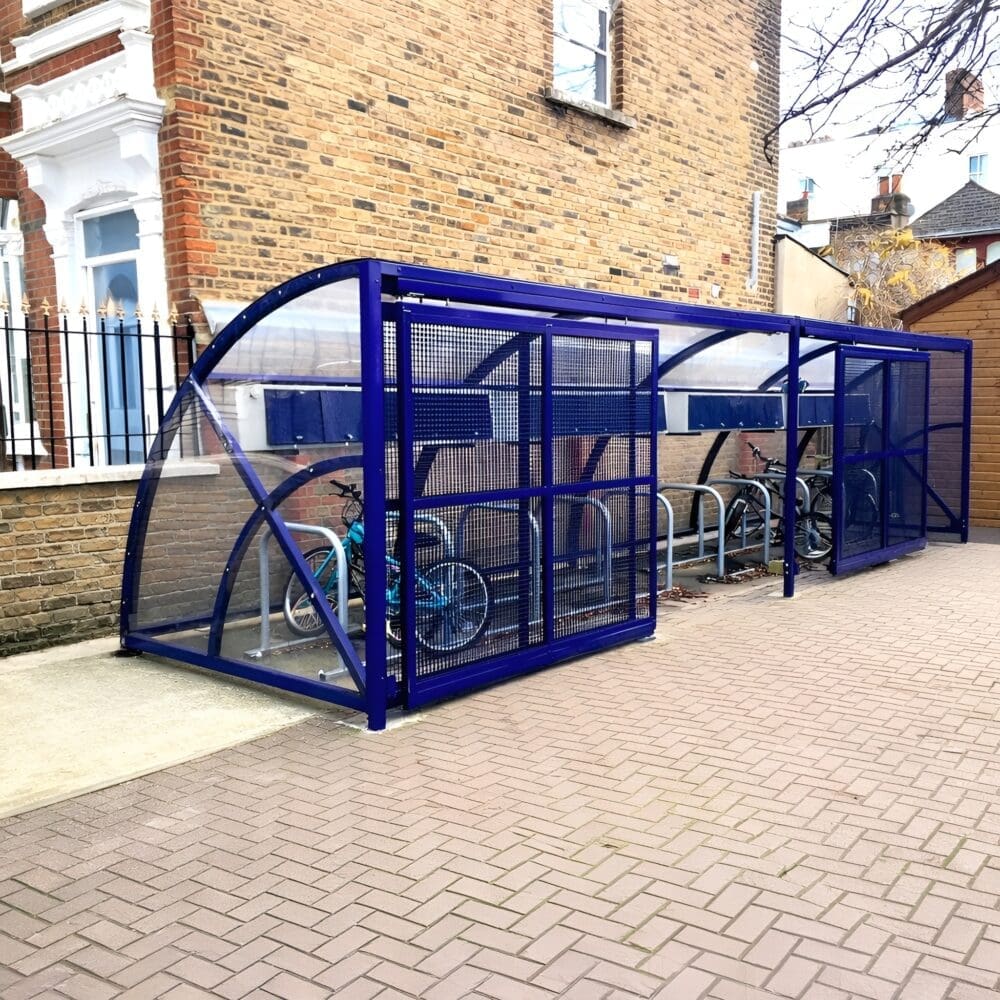

- Gates and Side Panels for restricted access
- Swipe Card or Fov Access Control is ideal for employee or resident-only storage
- PIR Solar Lighting, which is eco-friendly, motion-activated lighting
- Helmet Lockers, secure and weatherproof element storage
- Side Polycarbonate Panels for extra protection and visual uniformity
Applications
- Public realm & urban infrastructure
- Educational facilities (schools, colleges, universities)
- Housing developments
- Business parks & commercial buildings
- Hospitals and the healthcare environment
Downloads & Technical Documents
We’ve created this shelter to make specifying easy. All downloadable specs, with detailed CAD packages to integrate into your project workflow, are available below.
Dimensions
20 Space Moon Cycle Shelter
Width: 8150mm x Depth: 2100mm x Height: 2100mm (Bespoke Upon Request)
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 20 bicycles (10-hoop toastrack) |
| Dimensions | Customisable (modular design) |
| Material | Mild steel, hot-dipped galvanised (BS EN ISO 1461:2022) |
| Panels | UV-stable polycarbonate, fire and impact resistant |
| Finish Options | Galvanised or powder-coated (RAL range) |
| Mounting | Surface-mounted as standard |
| Accessories | Helmet lockers, PIR solar lighting, access control, gates & more |
| Installation | Installation is available nationwide but not required – supply-only orders are welcome. |
| Compliances | BREEAM aligned, Secured by Design compatible |
| Warranty | 10 years (manufacturer’s defects) |
Why Architects Choose the 20 Space Original Cycle Shelter
We understand the priority of any project is delivering compliant, secure and low-maintenance bike storage that meets the expectations of planning authorities, sustainability targets, and end users.
This shelter is modular, BREEAM-aligned, and built for high-traffic, high-use environments, backed by British manufacturing quality and a 10-year warranty. With nationwide installation, layout planning, and a single point of contact for multi-phase projects, we make specifying secure bike storage simple.
Need a Bespoke Specification?
Our in-house team offers:
- Free site surveys
- CAD layout drawings
- Custom RAL finishes
- Bespoke sizing and configurations
- Project-specific consultation
Whether you need to meet unique planning requirements or want a branded shelter for a flagship development, we can help.
Designed & Installed Nationwide.
Contact us today to discuss your next project or book a free site survey with our expert team. Whether a small development or a large public contract, we deliver reliable, compliant, and scalable bike storage solutions.
Frequently Asked Questions
Here are answers to common specification and compliance questions regarding the 20 Space Original Cycle Shelter.
What types of projects is the 20 Space Original Cycle Shelter designed for?
The 20 Space Original Cycle Shelter is suited to medium and large-scale developments requiring dependable, high-capacity cycle provision. It is frequently specified for residential schemes, schools, business parks and commercial offices.
Can the shelter be extended to increase capacity further?
Yes. The modular design allows the shelter to be extended in length to accommodate additional cycle spaces. This makes it suitable for phased developments or future expansion as occupancy levels increase.
What rack systems can be installed within the shelter?
The 20 Space Original Cycle Shelter can be configured with a variety of rack systems including Sheffield stands, semi-vertical racks or alternative layouts depending on spatial constraints and user needs. Layout drawings can be provided to ensure appropriate circulation and accessibility.
Does the shelter support planning and sustainable transport requirements?
By delivering covered and accessible cycle parking at scale, the shelter supports planning policies that promote active travel. It can form part of a compliant cycle storage strategy within commercial, residential and public sector developments.
What installation preparation is required?
Installation typically requires a suitable concrete base or structurally prepared hardstanding. Foundation requirements depend on ground conditions and project specifications. Technical drawings and fixing details are provided to support contractors during installation.
What warranty is included?
The 20 Space Original Cycle Shelter is backed by a 10-year manufacturing defects warranty, providing long-term assurance for developers, contractors and facilities managers.
