Product Description

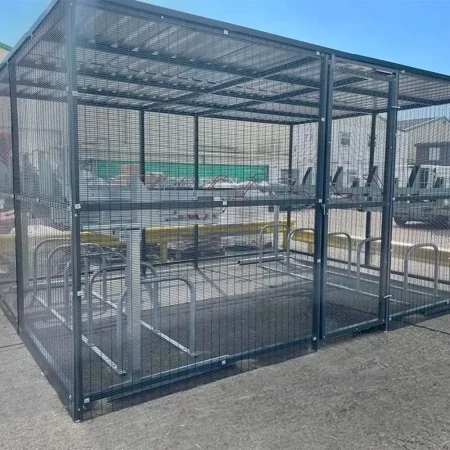

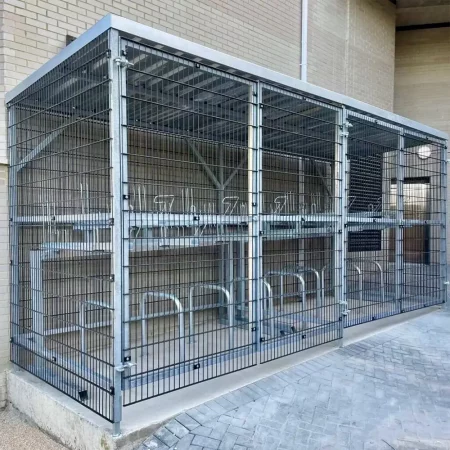

40 Space Two Tier Security Cycle Enclosure
The 20 / 40 Space Two Tier Security Cycle Enclosure has been engineered to provide secure bike storage in environments where both capacity and safety are critical. Available in 20-space and 40-space configurations, the modular design can be scaled up to suit the needs of large-scale commercial or public sector projects.
Each enclosure is constructed using hot-dipped galvanised mild steel to BS EN ISO 1461:2022 standard, with uprated mesh options for projects requiring enhanced security. Integrated Toastrack Cycle Stands allow users to lock both the wheel and frame, a feature highly valued by cyclists.
With flexible finish options, lighting integrations, and custom access controls, this enclosure can be tailored to align with any architectural specification. From corporate workplaces and residential developments, to schools and transport hubs, the enclosure supports cycling uptake while meeting sustainable goals such as BREEAM compliance.
Ideal Applications
The 20 / 40 Space Two Tier Security Cycle Enclosure is perfect for:
- Schools & Universities: Secure bike storage for staff and students
- Commercial Developments & Business Parks: Provide high-capacity, high-security cycle storage for tenants
- Residential Complexes: Shared storage that increases property appeal and meets planning conditions
- Transport Hubs & Rail Stations: Secure, large-volume bike storage for commuters
- Healthcare & NHS Facilities: Encourage active travel with safe, accessible cycle storage
- Urban Regeneration Projects: Meet secure bike storage London requirement while enhancing sustainability credentials
Why Choose This Enclosure?
- Designed with architects in mind, all downloads and drawings are available online
- Provides best-in-class security with upgradeable mesh and access control systems
- Maximises site footprint, 40 cycles within just two car parking spaces
- Fully customisable design to align with project specifications
- Backed by a 10-year warranty and UK-wide installation service
Downloads & Spec Tools
Technical Specifications
| Specification | Details |
|---|---|
| Capacity Available | 20 or 40 Spaces |
| Standard Dimensions (20 Space) | 5200mm (L) x 4100mm (W) x 2100mm (H) |
| Standard Dimensions (40 Space) | 8150mm (L) x 5200mm (W) x 2100mm (H) |
| Frame | Galvanised mild steel tubbing, uprated 80 SHS framework options |
| Finish | Hot-dipped galvanised to BS EN ISO 1461:2022, or polyester powder-coated to RAL colours |
| Cladding | 10 Gauge Mesh (standard), 358 Mesh, or Twin Wire Mesh (optional) |
| Gate | Single swing gate (open-fronted option available) |
| Locking Options | Standard lock, swipe card access, and other security options |
| Stands | Toastrack Cycle Stands (secure wheel + frame locking) |
| Lighting | Solar or PIR LED lighting available |
| Modularity | Extendable design, adaptable to suit site requirements |
| Compliance | Suitable for BREEAM projects |
| Warranty | 10-year manufacturer’s defects warranty |
| Installation | Installation is available nationwide but not required – supply-only orders are welcome. |
Double Stack Bike Rack for High-Density Cycle Parking
This two-tier system functions as a commercial double stack bike rack, allowing bicycles to be stored vertically in upper and lower positions to maximise capacity within a reduced footprint. Ideal for commercial developments, residential schemes and transport hubs, it delivers efficient cycle parking without compromising accessibility or security.
Optional Extras
- Helmet lockers for additional user convenience
- Solar LED or PIR lighting for enhanced safety
- Colour powder-coating in any RAL shade
- E-Bike charging integration
- Alternative mesh cladding for higher security environments
Getting Started
Contact our team to discuss your project requirements, request a free site survey, or receive a non-obligation quote. Our design experts will work with you to create a bespoke cycle shelter solution that meets functional needs and design preferences.
Frequently Asked Questions
Here are answers to common specification and compliance questions regarding the 40 Space Two Tier Cycle Shelter.
What are the advantages of a 40 space two-tier cycle shelter?
A two-tier configuration enables significantly greater cycle capacity within a controlled footprint. The 40 Space Two Tier Cycle Shelter is ideal for high-density residential, commercial and campus developments where maximising capacity without expanding site area is critical.
What minimum height clearance is required?
Two-tier systems require sufficient vertical clearance to allow safe lifting and lowering of bicycles. Required height depends on the specific rack system specified. Detailed dimensional drawings are provided to ensure compatibility with site constraints prior to installation.
Is the upper tier easy and safe to operate?
Yes. The upper tier is typically fitted with assisted lifting mechanisms designed to reduce strain and improve usability. This makes the system suitable for daily use across residential, commercial and educational environments.
What structural and foundation considerations apply?
Due to increased loading associated with stacked storage, installation requires a structurally suitable concrete base or reinforced hardstanding. Fixing specifications and load information are available to support structural assessment during the design stage.
Does the shelter support planning and sustainable transport requirements?
By delivering covered and high-capacity cycle provision, the 40 Space Two Tier Cycle Shelter supports planning policies that encourage active travel. It can form part of a compliant cycle storage strategy within large-scale residential and commercial schemes.
Are CAD drawings and technical specifications available?
Yes. CAD drawings, dimensional layouts and technical specifications are available to support architects and contractors throughout planning and tender stages. Site surveys can also be arranged to confirm clearance and installation requirements.
