Product Description
Battery Charging Cabinet
The Battery Charging Cabinet is a fire-resistant, explosion-protected solution designed for the safe charging and isolation of lithium batteries. Engineered for environments where controlled charging is essential, the cabinet contains ignition events, prevents flame escape and provides a monitored, compliant setting for day-to-day operations. Equipped with integrated smoke detection and automated power shut-off, it offers dependable protection for workshops, industrial facilities, public sector buildings and commercial environments.
Why Choose the Battery Charging Cabinet?
Improve Workplace Fire Safety
Mitigates the high risk of lithium battery fire during charging – the stage where most documented battery incidents occur.
Meets Insurer & Risk-Assessment Requirements
Ideal for workplaces following VdS 3103, TRGS 510 guidance, and internal insurer stipulations.
Ideal for Isolating Charging from Storage
Reduces cross-contamination between charged, uncharged, faulty, or quarantined batteries.
Designed for Real-World Use
Audible alarms, automatic shutdown, and proven explosion-relief technology ensure predictable performance during emergencies.
Flexible for Industrial and Commercial Settings
Suitable for workshops, logistics depots, construction sites, universities, public buildings, and manufacturing facilities.
Model Options

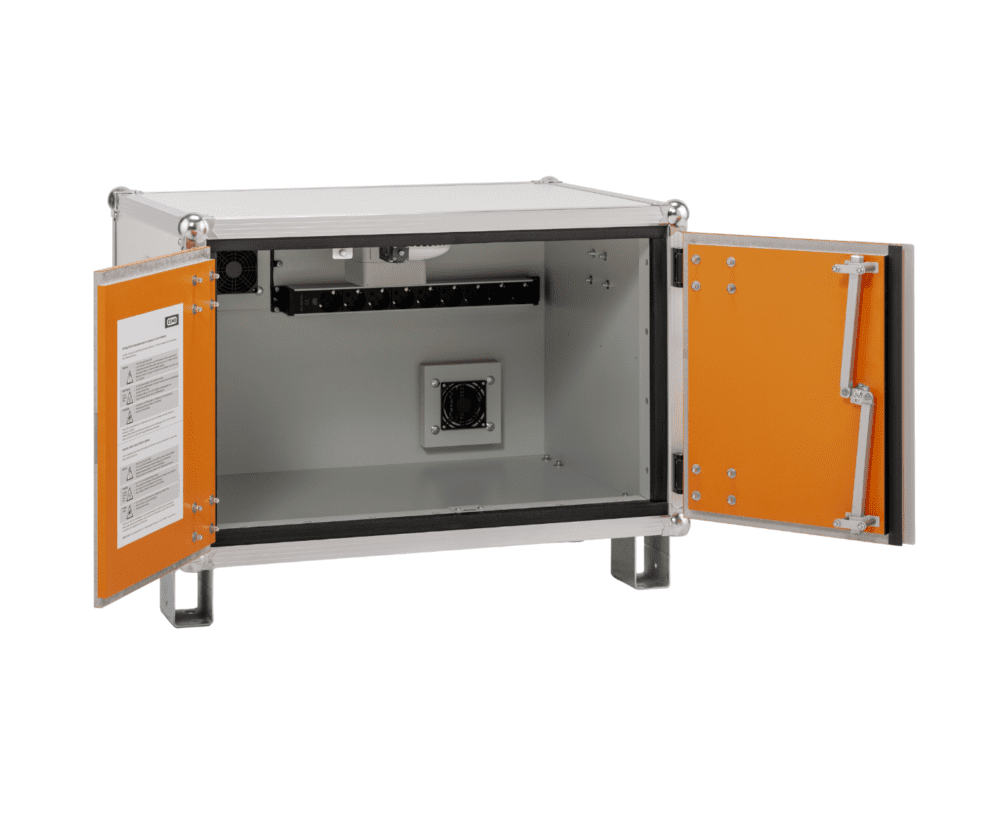

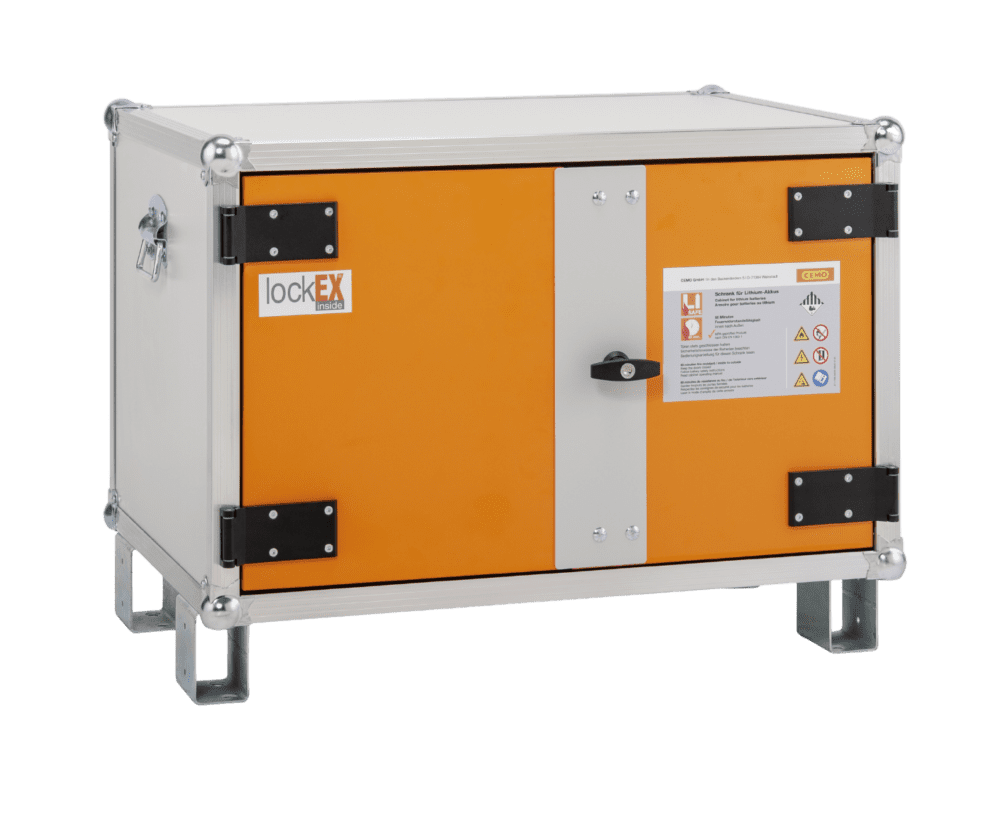

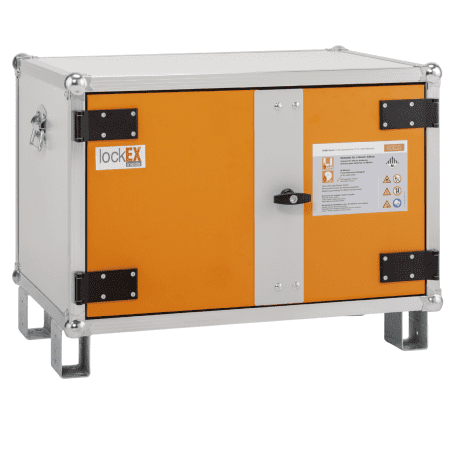

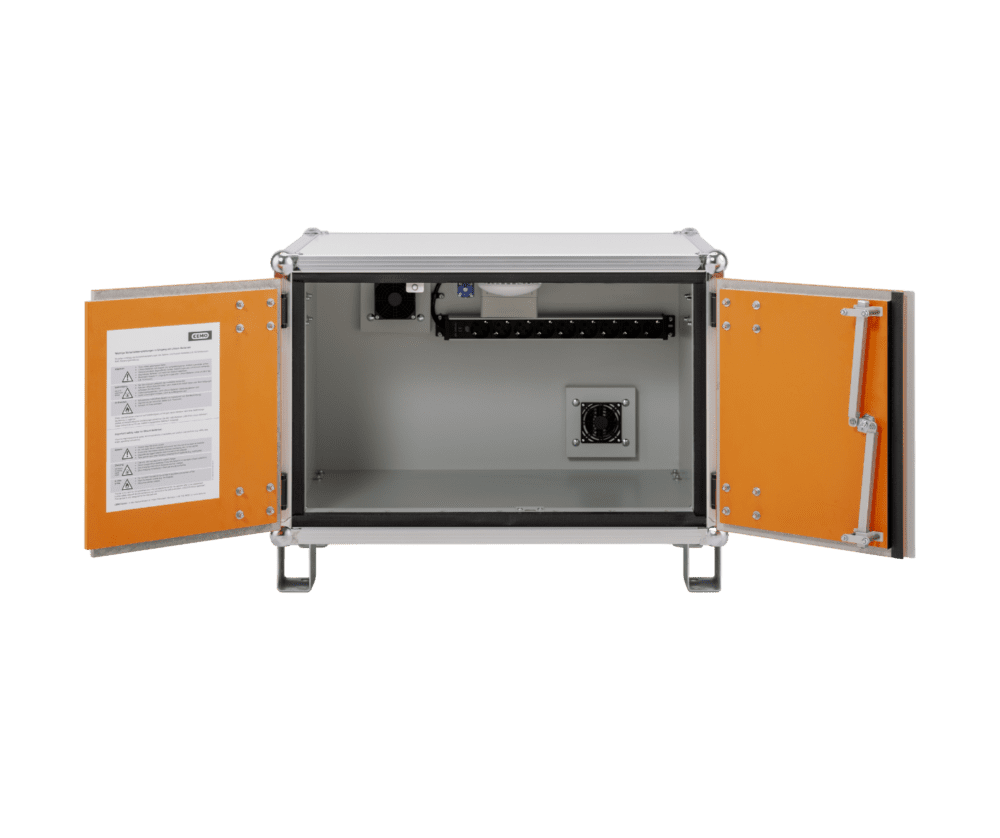

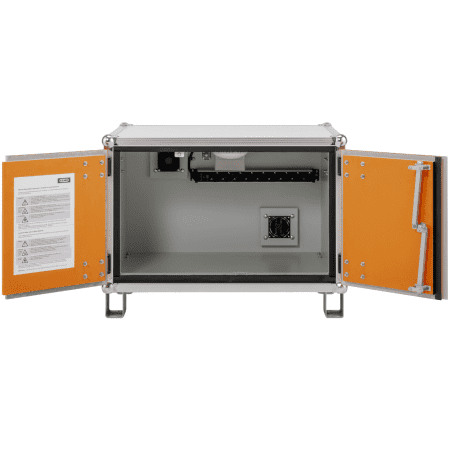

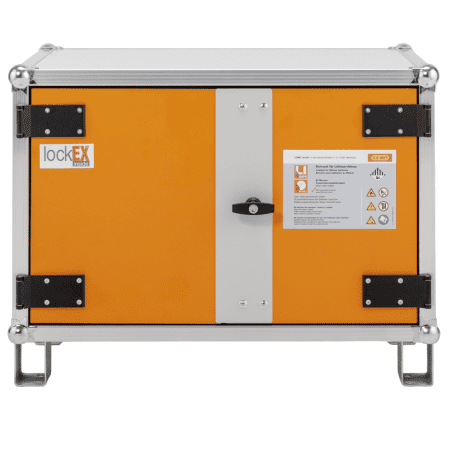

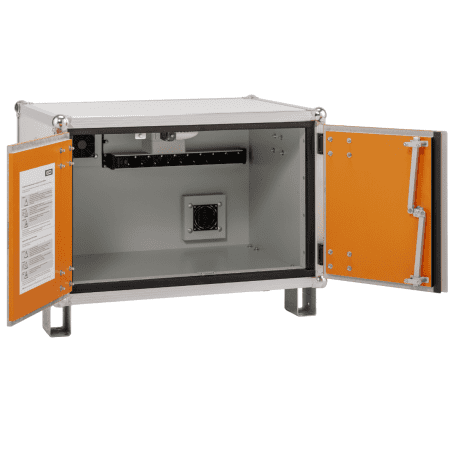

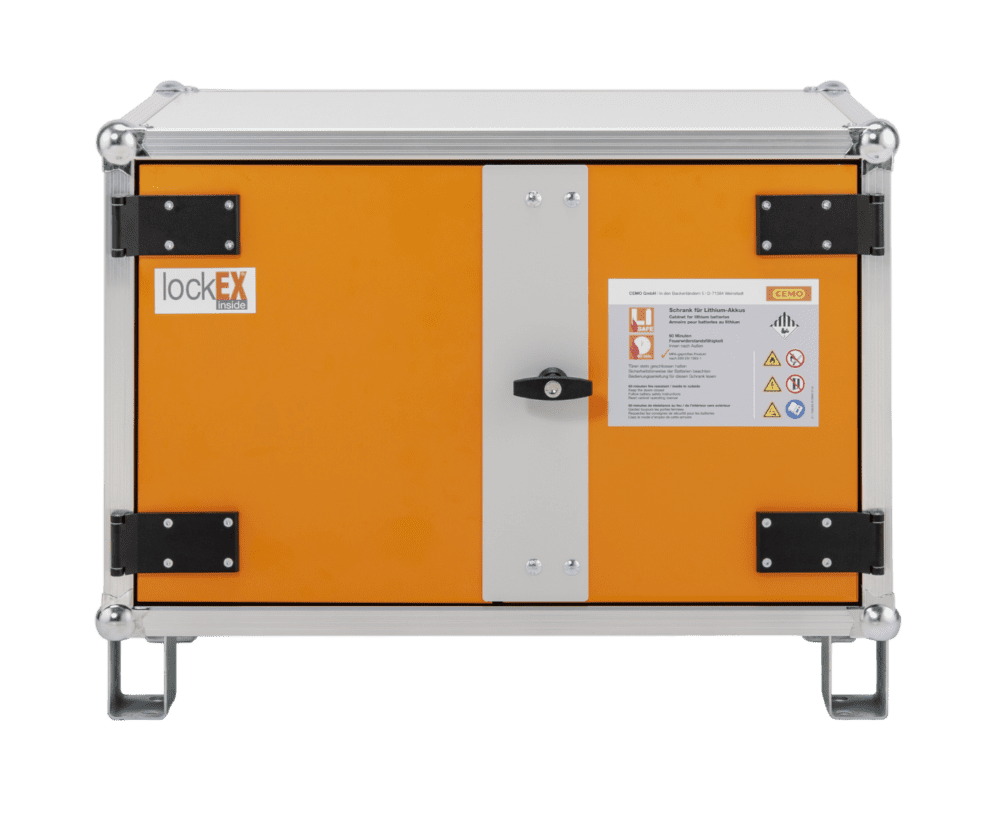

Medium – 620mm H
A compact, single-level charging cabinet ideal for smaller workshops and facilities needing dedicated, safe charging infrastructure.
| External Dimensions | 800 × 660 × 620 mm |
| Internal Dimensions | 730 × 530 × 450 mm |
| Weight | 84 kg |
| Power Supply | 1-phase |

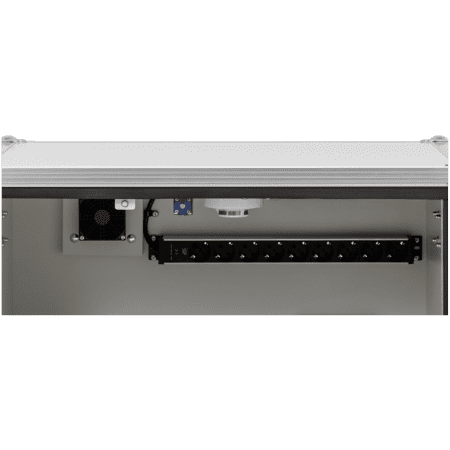

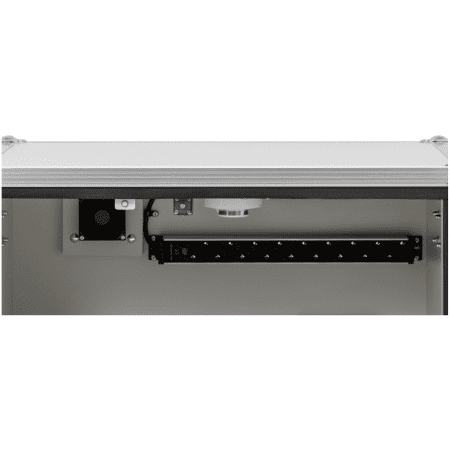

| Socket Strip | 6-way (3500 W, 16 A) |
| Included | Stacking feet, two smoke detectors, technical ventilation, power shut-off, door-contact switch |

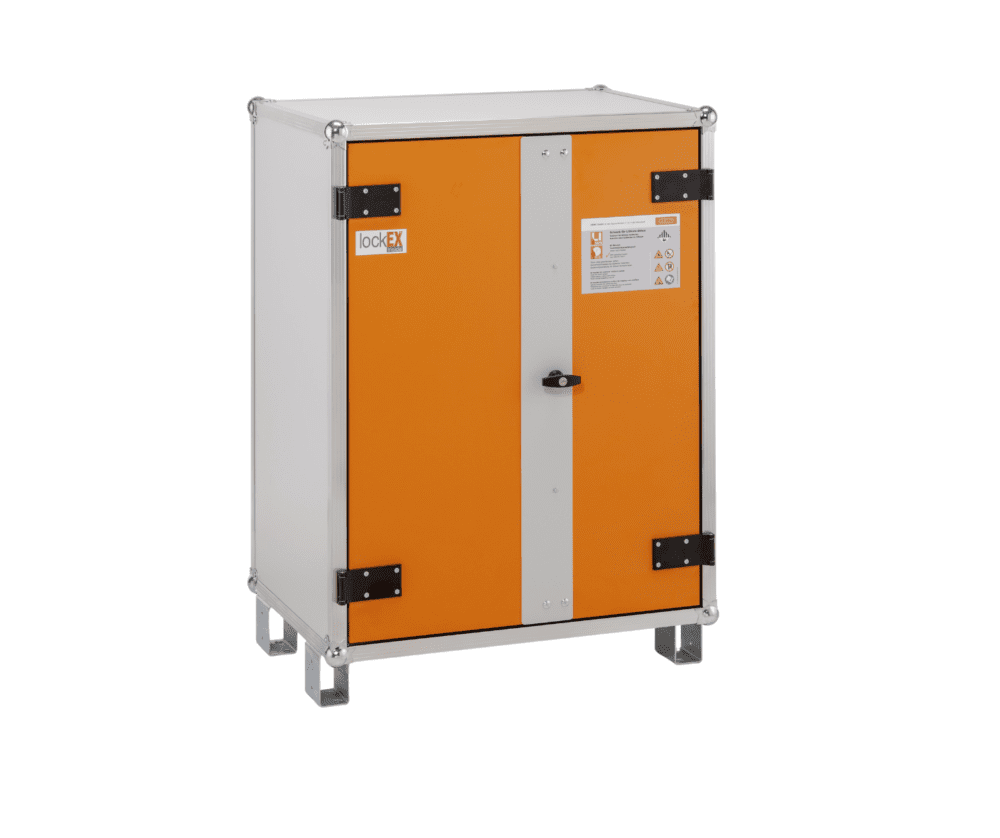

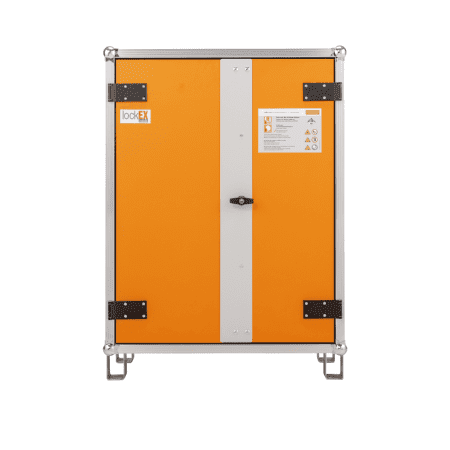

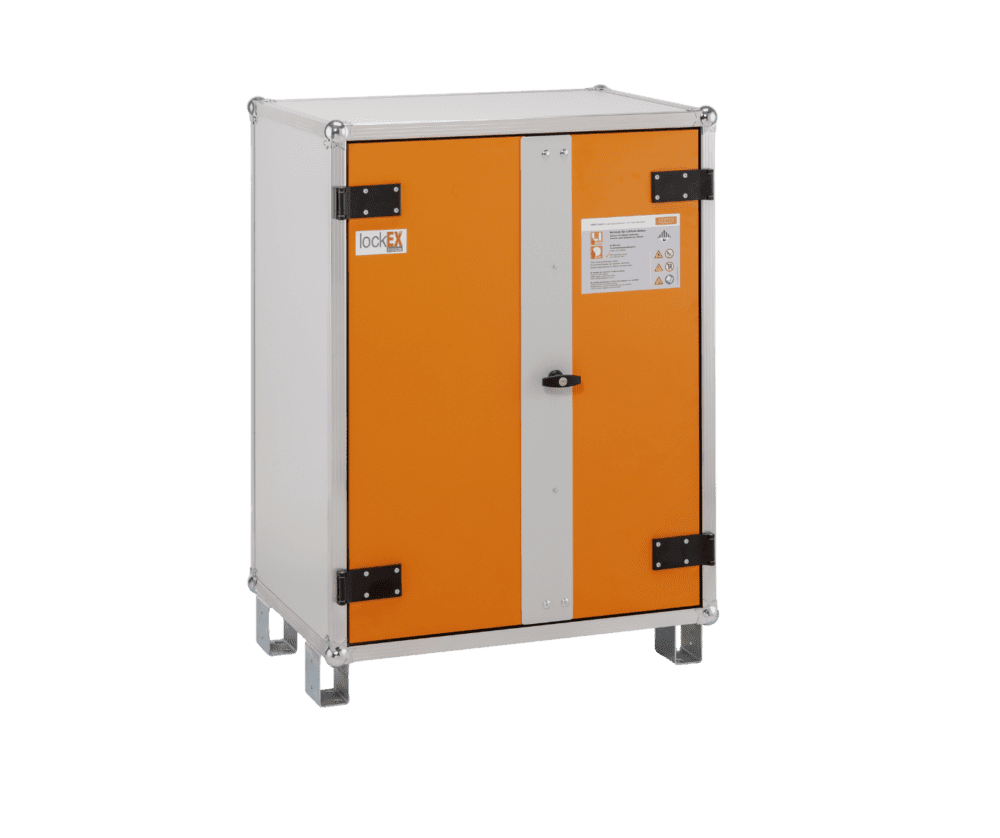

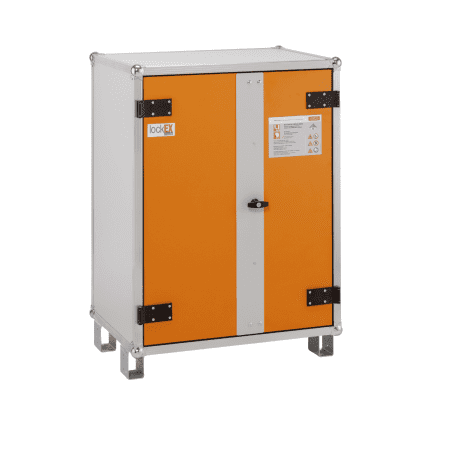

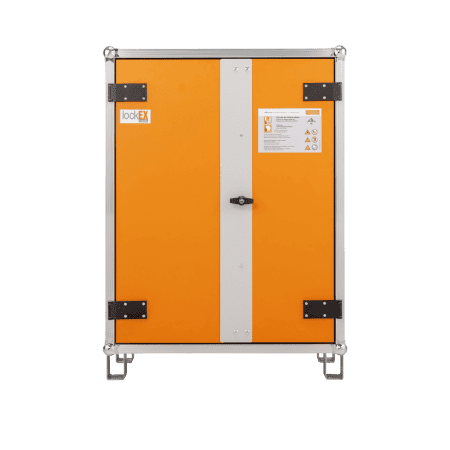

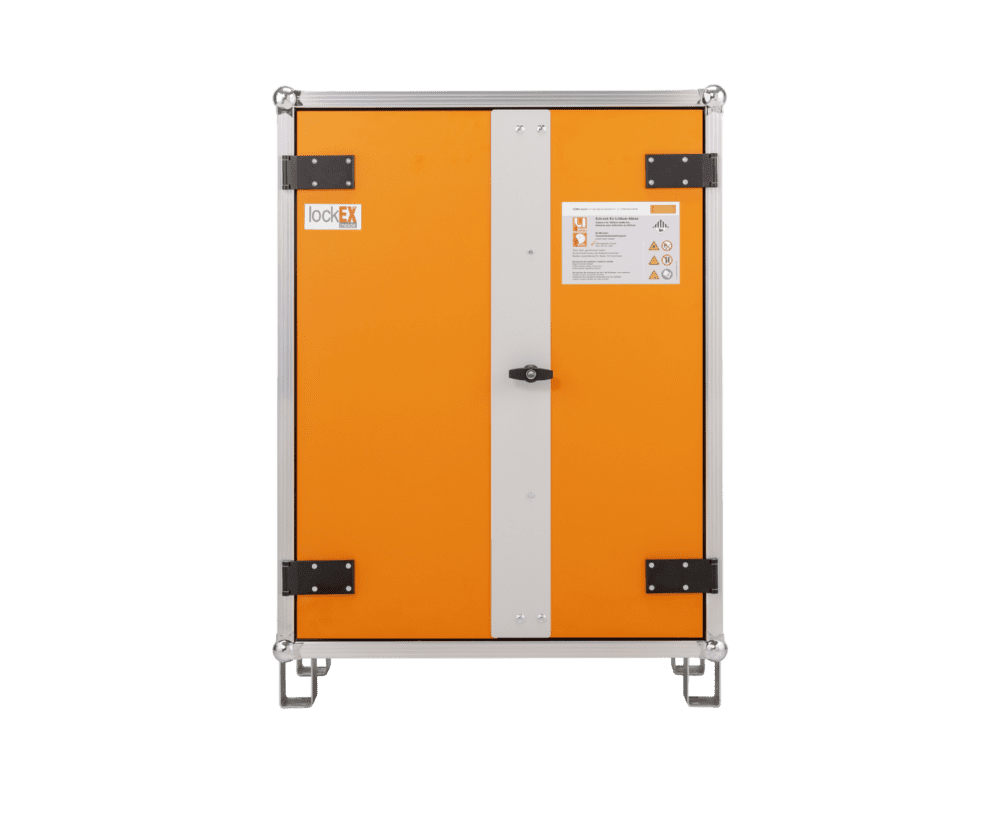

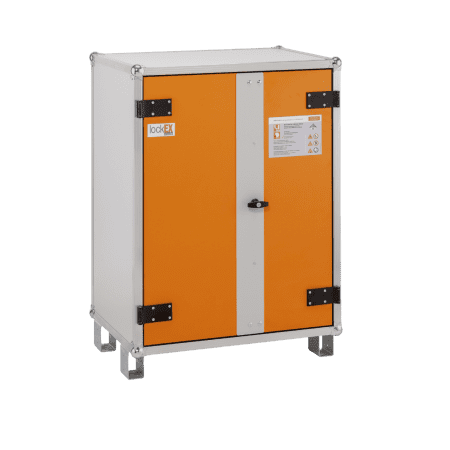

Large – 1110mm H
A taller cabinet offering increased internal height and two vertically arranged power strips, ideal for medium-to-large charging requirements.
| External Dimensions | 800 × 660 × 1100 mm |
| Internal Dimensions | 730 × 530 × 840 mm |
| Weight | 135 kg |
| Power Supply | 1-phase |
| Socket Strip | 2 × 6-way (3500 W, 16 A) |
| Included | Stacking feet, two smoke detectors, technical ventilation, power shut-off, door-contact switch |
Technical Specifications
| Specification |
Details |
|---|---|
| Models Available | Medium and Large |
| Explosion Protection | Spring-loaded pressure-relief system |
| Fire Resistance | 60 minutes, inside to outside (DIN EN 1363-1) |
| Construction | Non-combustible body and internal components |
| Smoke Detection | Two independent battery-powered smoke detectors |
| Power Management | Automatic shut-off if heat is detected or doors are opened |

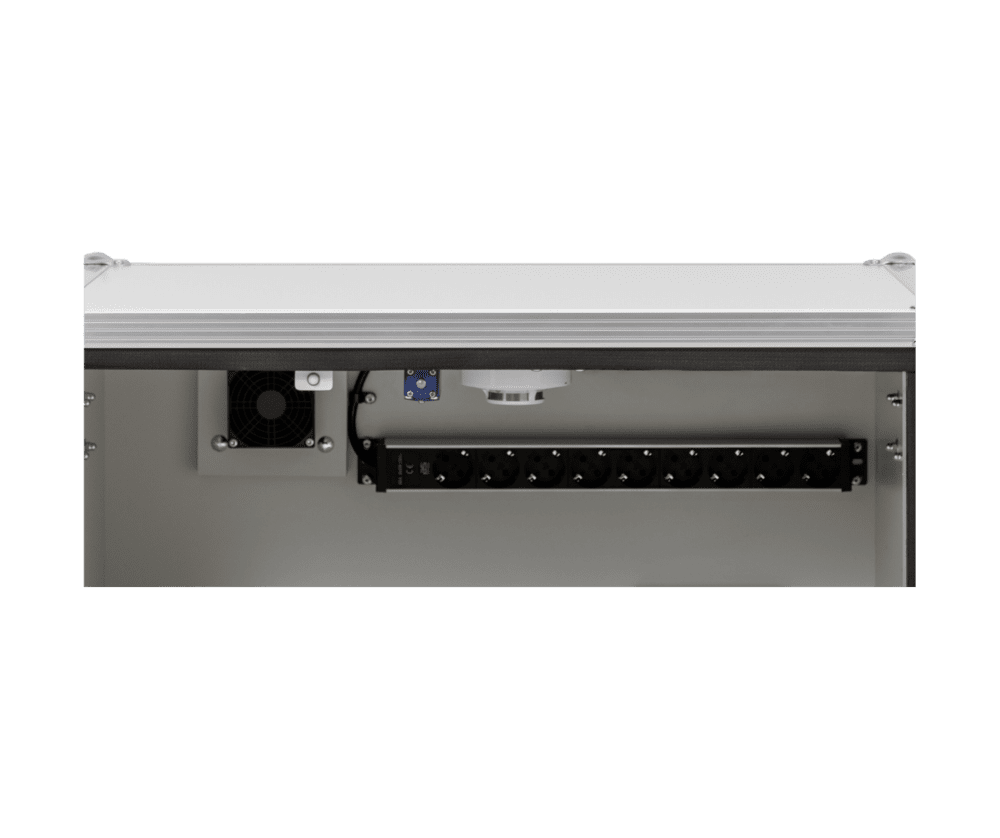

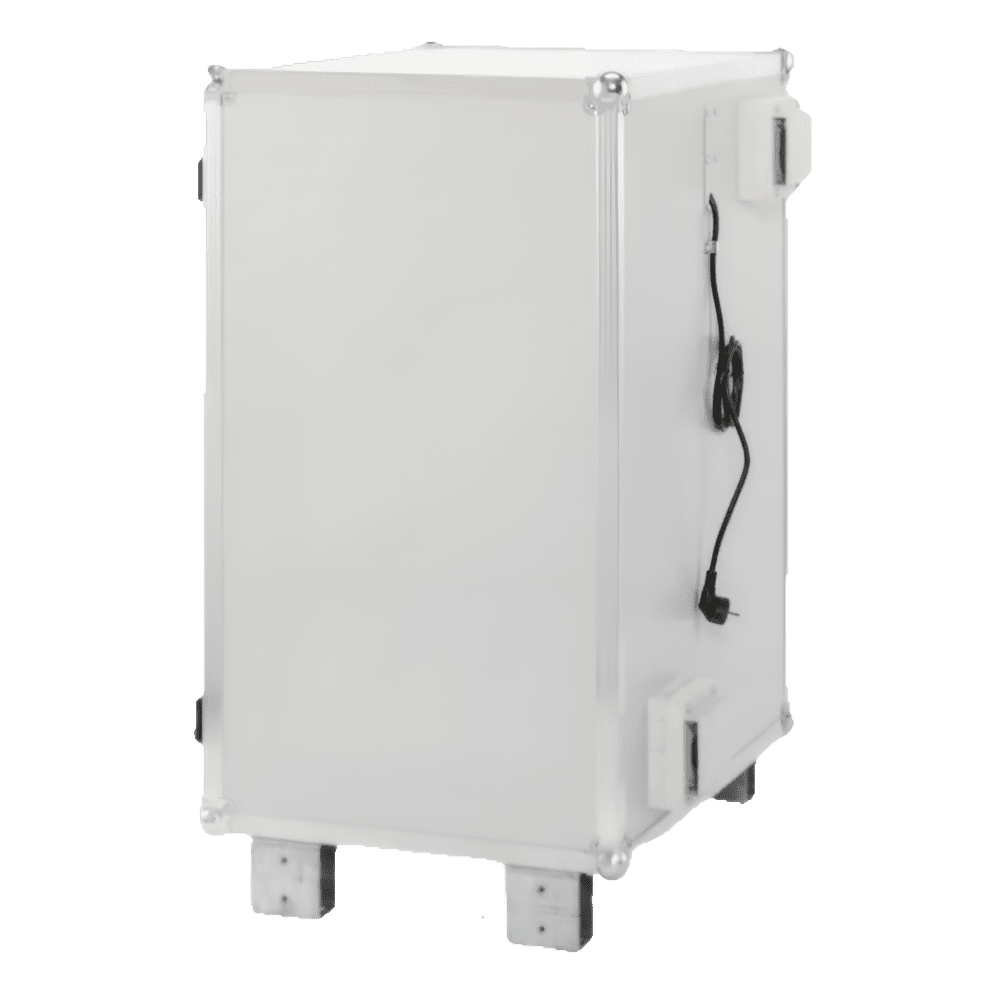

| Ventilation | Technical ventilation with a heat dissipation system |
| Certification | TÜV Nord tested for real battery fire & gas explosion |
| Stackability | RAL 7035 body, RAL 2004 doors |
Let’s Talk About Your Project
Whether you require a compact under-bench cabinet or a larger multi-battery solution, our team can assist with layouts, compliance queries and technical integration. Contact us for a quote or to begin specifying your lithium battery safety system.
