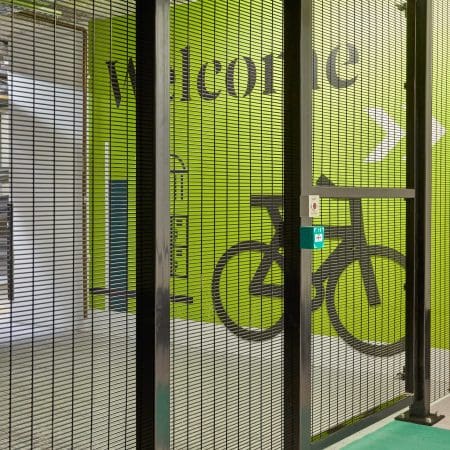

Our high security mesh fencing protecting a storage area with a green wall displaying the word "welcome" in large letters. The wall also features a graphic of a bicycle and directional arrows. The area appears to be secured with metal bars and has a locked gate.

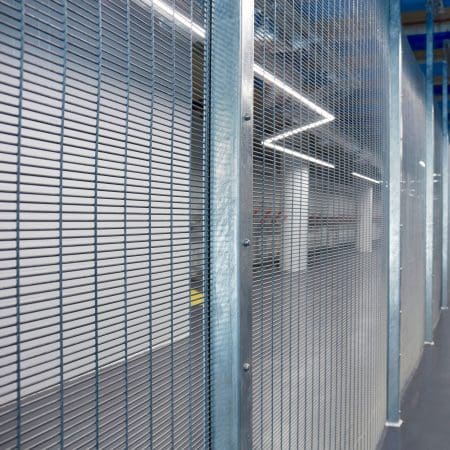

A secure indoor area with a security mesh fence and sturdy steel beams, featuring an empty corridor with polished concrete floors and a ceiling with linear LED lighting. The atmosphere appears industrial and modern.

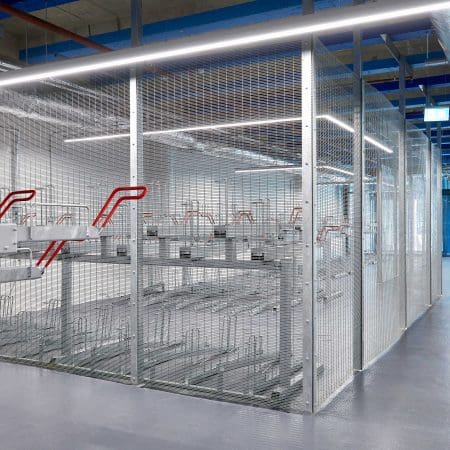

A large, well-lit room containing several rows of metal two tier bike racks enclosed by the anti-climb mesh fencing. The ceiling features exposed pipes and beams.

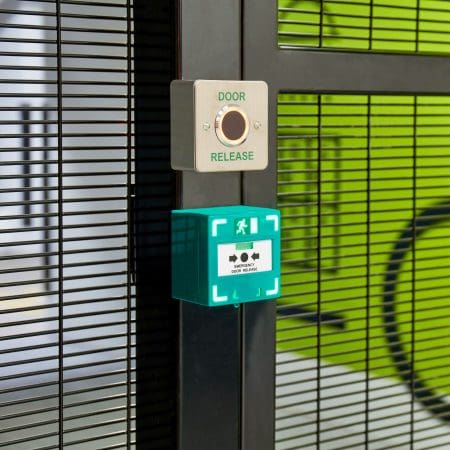

A close-up of a security gate with a "DOOR RELEASE" button and a green emergency exit button. The gate features black metal bars and a partially visible bright green wall in the background.

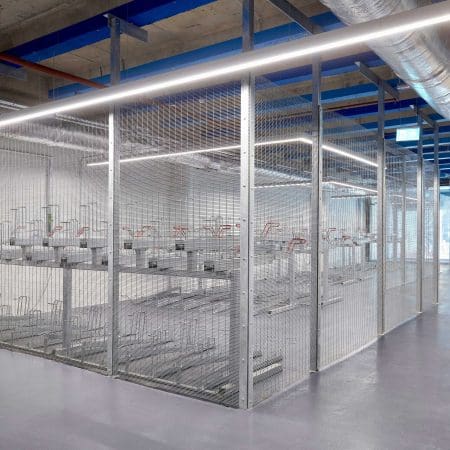

A large, well-lit room with industrial decor containing several rows of metal two tier bike racks enclosed by the anti-climb mesh fencing. The ceiling features exposed pipes and beams, and the floor is a smooth, polished concrete surface.

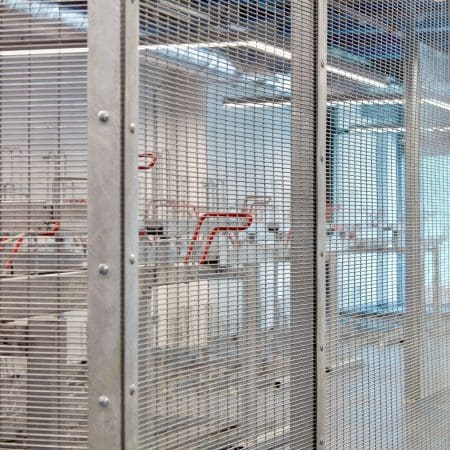

Close up of the two tier bike racks enclosed by the anti-climb mesh fencing.

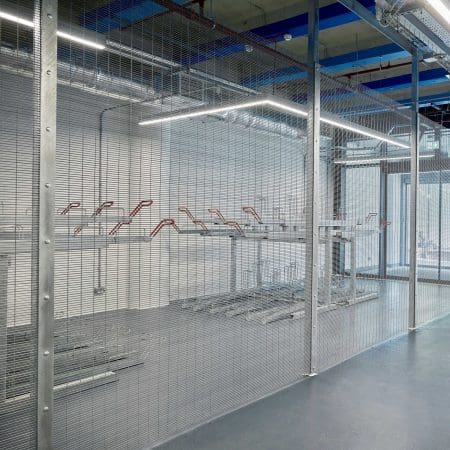

The image shows a secured indoor bicycle storage area with anti-clim mesh fencing. Inside, empty bike racks are arranged along the walls under overhead fluorescent lighting. The flooring is smooth and grey, and there are visible metal pipes and structural beams on the ceiling.

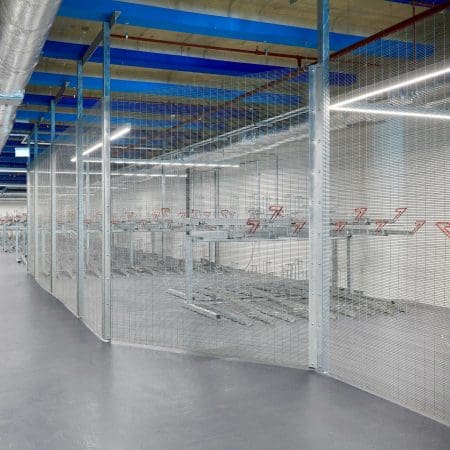

A secured indoor bike storage area with metal mesh fencing and two-tier bike racks. The space has a concrete floor, and the ceiling features blue beams and industrial piping. Fluorescent lights provide bright illumination.

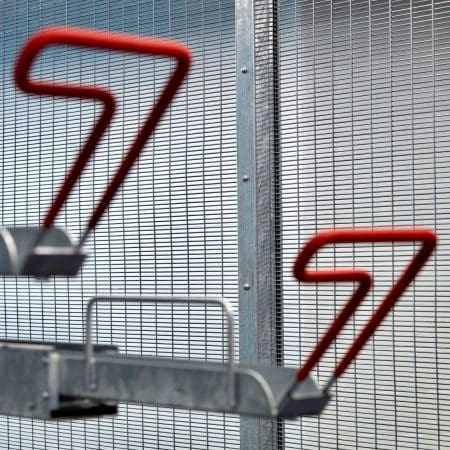

Close-up of a metallic bike rack with curved red hooks against a background of wire mesh fencing. The bike rack's design features sleek, angled red components that stand out against the industrial aesthetic of the grey mesh.

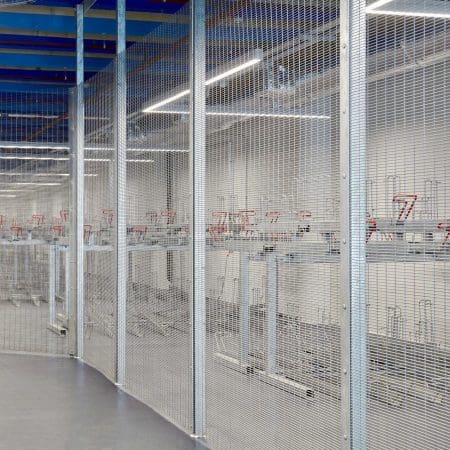

A spacious, well-lit industrial storage area with several metal bike racks mounted on the wall behind a mesh wire fence. The ceiling has noticeable blue beams and the floor is a polished, grey concrete.

High Security Anti-Climb Mesh Partitioning

Our High Security Anti-Climb Mesh Partitioning provides exceptionally secure, floor-to-ceiling protection for cycle storage, plant equipment, and commercial spaces. Designed for car parks, basements, and high-risk environments, this robust system combines hot-dipped galvanised steel with Secure by Design compliance. Fully customisable with a gate and locking option, it delivers long-lasting, British-made security backed by a 10-year warranty.


Key Product Features

  • Finish: Mesh and framework hot-dipped galvanised to BS EN ISO 1461:2022 with optional powder-coated finish
  • Mesh Aperture: 76.2mm x 12.7mm. x 4-4.5mm for maximum protection and surveillance
  • Fixing System: Unique ultra-secure clamp-bar fixing or high-security clips for added stability
  • Posts: 80mm x 80mm SHS box posts, with bolt-down or roof-fix options (100mm SHS available)
  • Panel Overlap: Minimum 75mm overlap at posts for increased strength and tamper resistance
  • Gates: Single leaf-and-a-half, or double swing gates with mechanical or electronic locking options (including D-handle access)
  • Heights: Available in 2.0m, 2.4m, and 3.0m (extendable up to 6.0m)
  • Compliance: Secure by Design (SBD) certified and Police approved
  • Warranty: 10-year manufacturer’s defects warranty
  • Installation: Nationwide with no-cost site layout service

Need help with installation?

We offer a full installation service!

Product Description

High Security Anti-Climb Mesh Partitioning

Designed specifically for underground car parks, basements, and high-traffic commercial sites, our High-Security Anti-Climb Mesh Partitioning provides floor-to-ceiling protection for cycle storage areas, bin compounds, and plant equipment. Manufactured in Britain and trusted nationwide, this robust solution fully complies with Secure by Design standards, making it the ideal choice for architects and contractors seeking a safe, durable, and specification-ready system.

Why Choose Anti-Climb Mesh Partitioning?

This system is designed to protect high-value cycle storage areas, offering unmatched security, flexibility, and compliance. Whether installed alongside our Two Tier Bike Storage, Semi Vertical Bike Racks, or as standalone secure enclosures, it delivers peace of mind for building managers and end users.

  • Secure by Design compliant: Police approved specification
  • Customisable Layouts: Built to fit irregular spaces, height restrictions, or no roof-fix environments
  • Dual Functionality: ideal for secure bike storage, bin compartments, and general plant equipment
  • Made in Britain: Fabricated using high-quality mild steel, hot-dipped galvanised to BS EN ISO 1461:2022
  • Long-Term Value: Backed by a 10-year manufacturer’s warranty

Drawings

High Security Anti-Climb Mesh Partitioning Render

Downloads & Spec Tools

Technical Specifications

Specification Details
Mesh Aperture 76.2mm x 12.7mm x 4-4.5mm
Finish  Hot Dipped Galvanised (BS EN ISO 1461:2022) + Optional Powder Coat
Posts 80mm x 80mm SHS (100mm option available)
Fixing System Ultra-secure clamp-bar or high-security clips
Gates  Single, Leaf-and-a-Half, Double (mechanical or electronic locking)
Heights 2.0m, 2.4m, 3.0m (extendable to 6.0m)
Compliance Secure by Design
Warranty 10 Years Manufacturing Warranty
Installation Nationwide with no-cost setting out service
Origin Made in Britain

Built for Architects & Specifiers

We understand that clarity and compliance-ready documentation are essential when specifying for a project. That’s why we provide:

  • CAD drawings & NBS specifications for direct integration into project plans.
  • Downloadable technical sheets are updated and easily accessible
  • Consultation and site surveys to ensure the solution matches any project requirements

Getting Started

Whether designing a new cycle hub, upgrading facilities for active commuting, or specifying secure bike storage solutions for commercial spaces, our High Security Anti-Climb Mesh Partitioning provides an immediately specifiable solution.

Enquire Now

Additional Information

Size

Bespoke Dimensions
Lead Time

4 — 6 Weeks

Specification Sheet

CAD Drawing PDF

CAD 2D DWG

Hot Dipped Galvanised Steel

BS EN ISO 1461:2022

Polyester Powder Coated

To any RAL colour

Lock & Key
Hasp & Staple
Swing Gate Mechanical Lock
Electronic Access Card Lock
Toastrack Cycle Rack

Sheffield Cycle Stand

Two Tier Cycle Rack

Gas Assisted Two Tier Cycle Rack

E-Bike Two Tier Cycle Rack
