Product Description

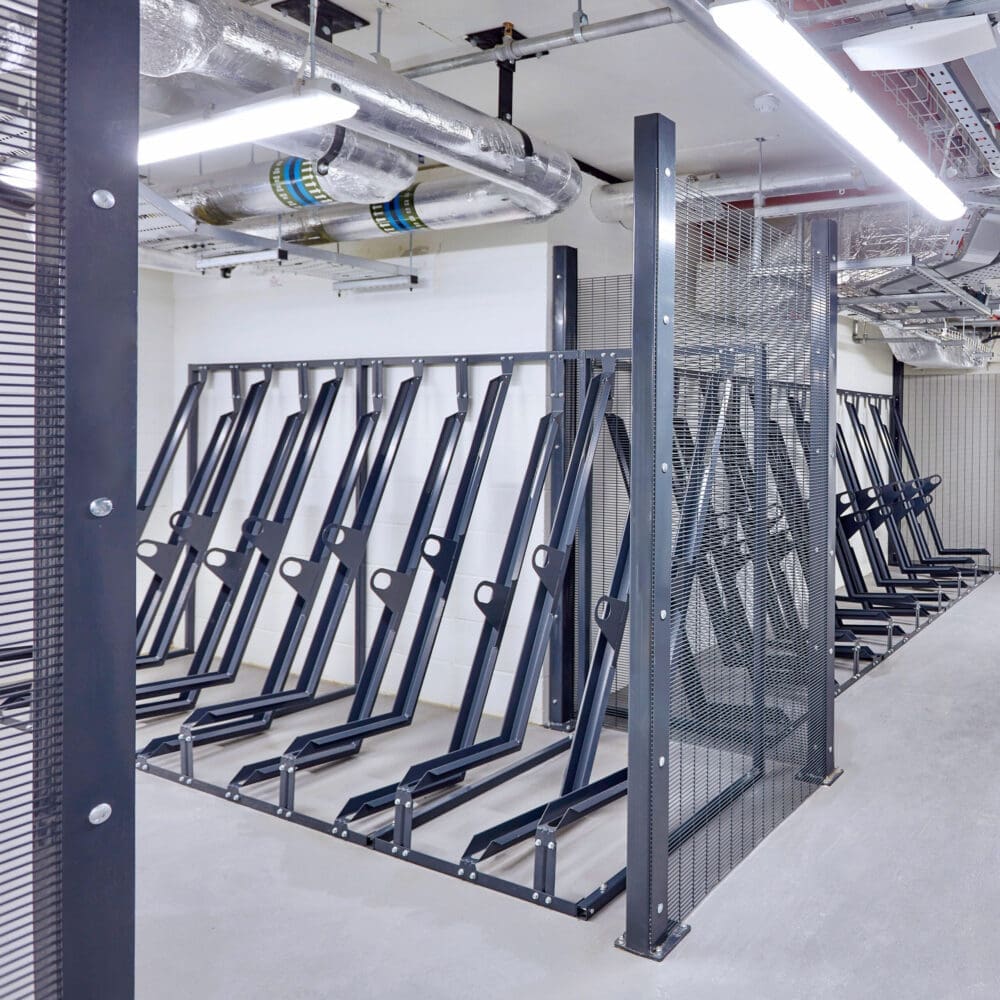

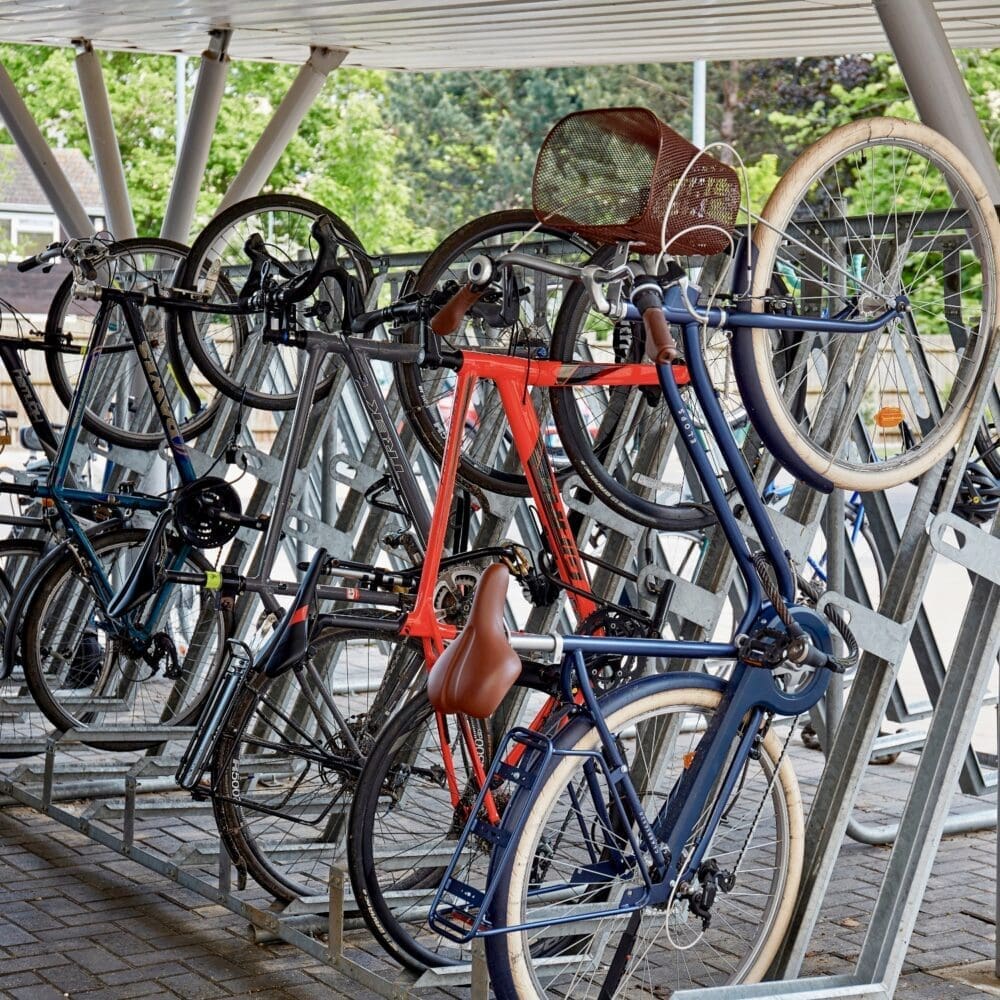

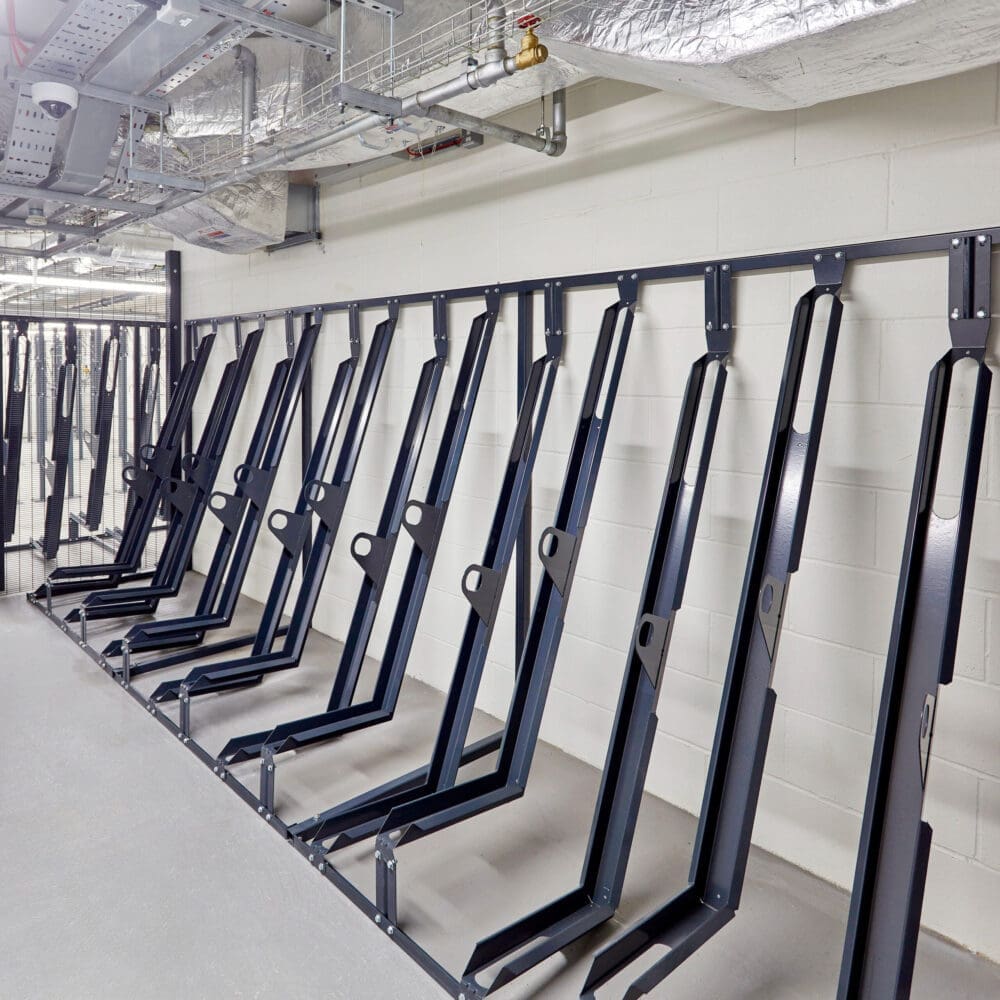

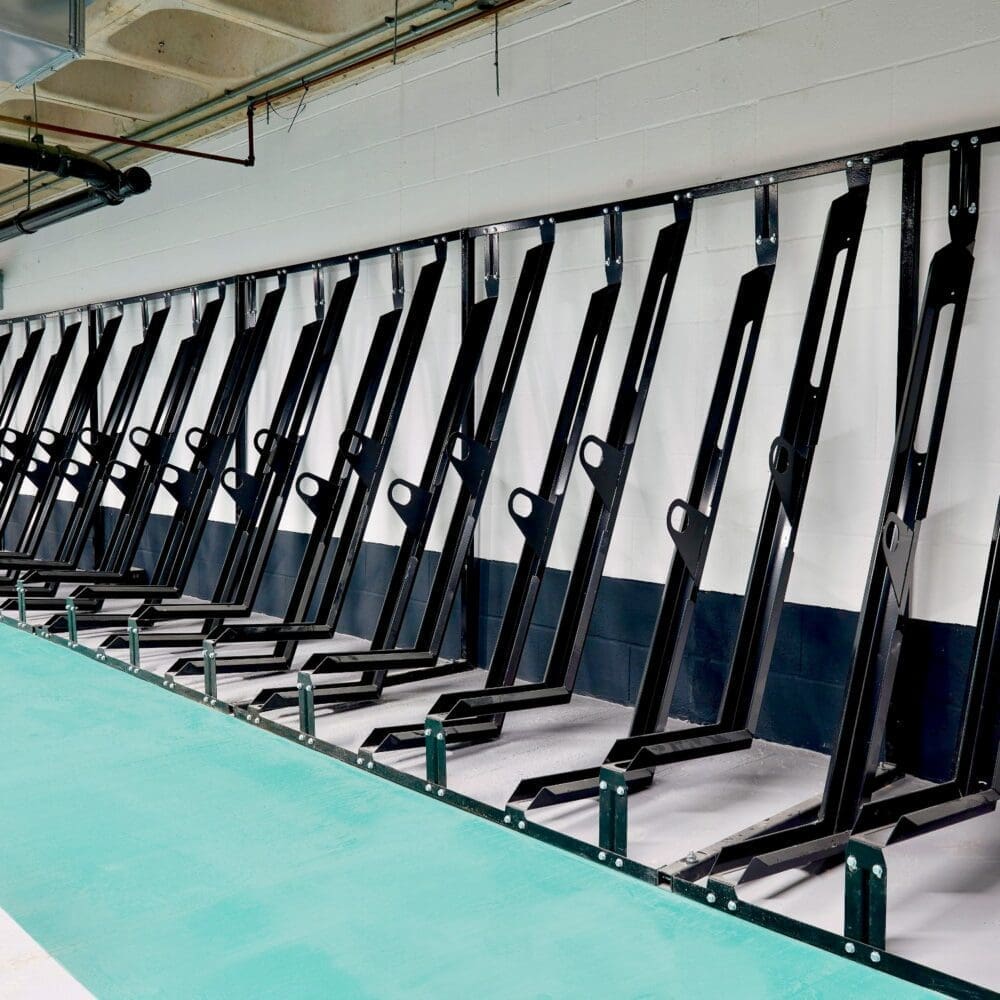

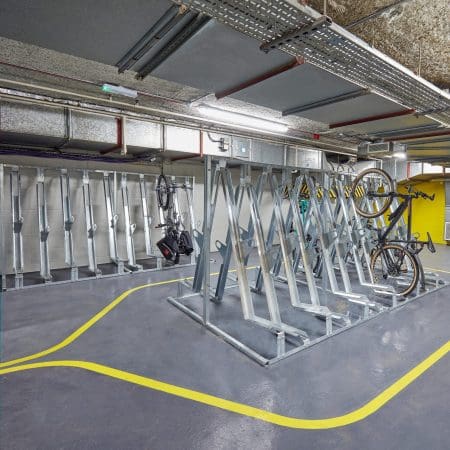

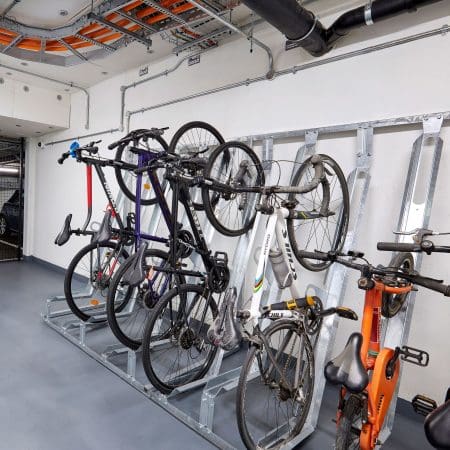

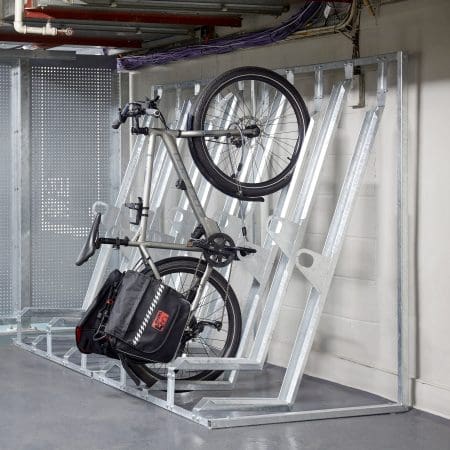

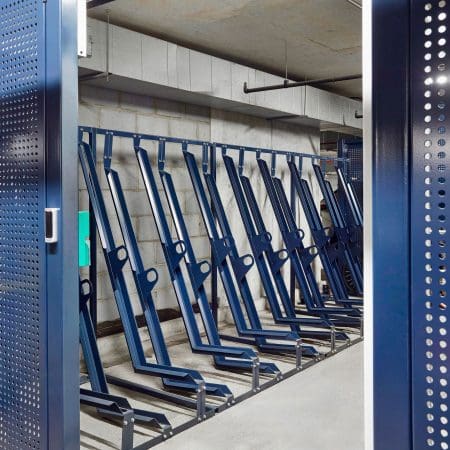

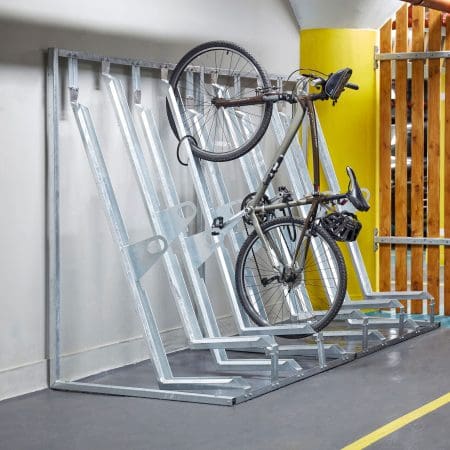

Semi Vertical Cycle Rack
The Semi Vertical Cycle Rack is a clever, compact bike storage solution that maximises capacity in tight areas. Made in Britain and built from hot-dipped galvanised steel with integrated high-security locking hoops, this rack secures both frame and wheels. It’s perfect for bike storage in both residential and commercial developments, with optional powder coating and quantity discounts available, paired with unmatched lead.
Downloads & Spec Tools
Technical Specifications
| Specification | Details |
|---|---|
| Material | Hot-dip galvanised steel to BS EN ISO 1461:2011 |
| Width Between Racks | 305 mm centres (custom centres available on request) |
| Height | 1705 mm standard (clear entrance depth 1115 mm) |
| Installation Space | 900 mm minimum aisle width (aisle to wall), 1100 mm end to end |

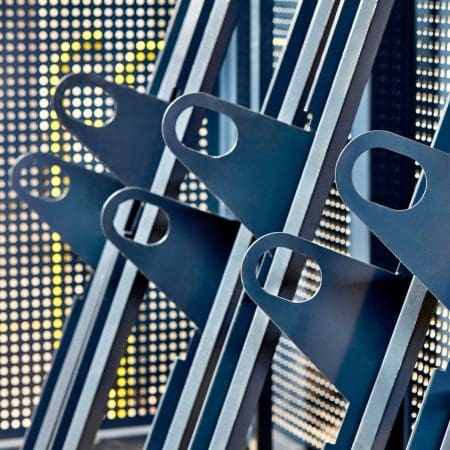

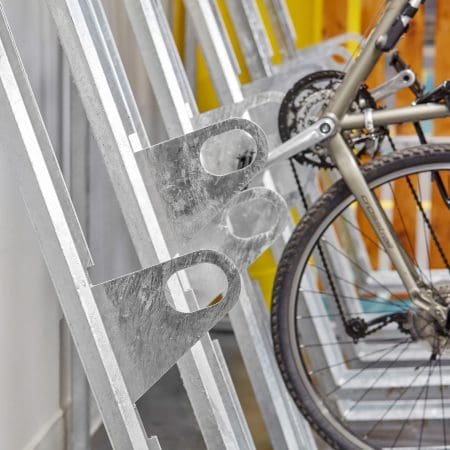

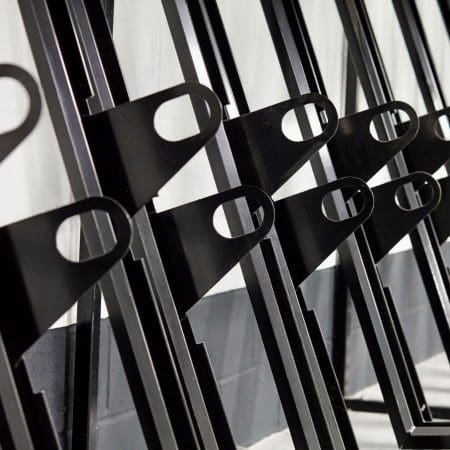

| Security Feature | Integral high-security locking hoops |

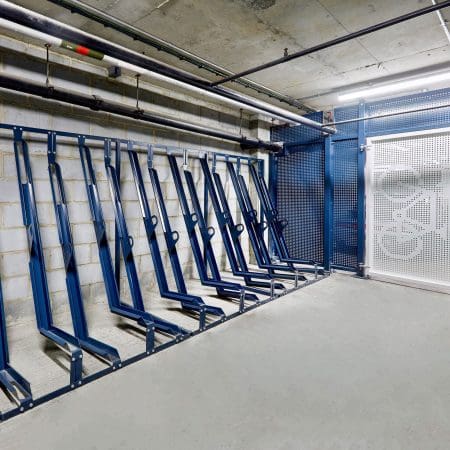

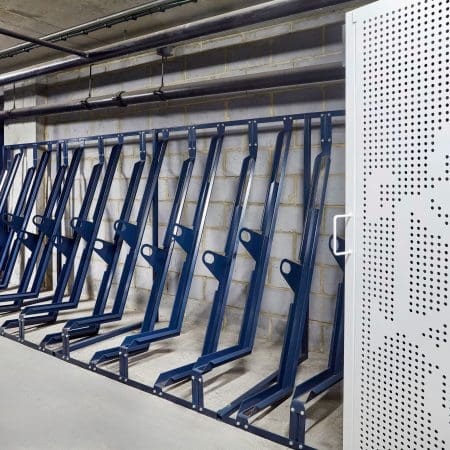

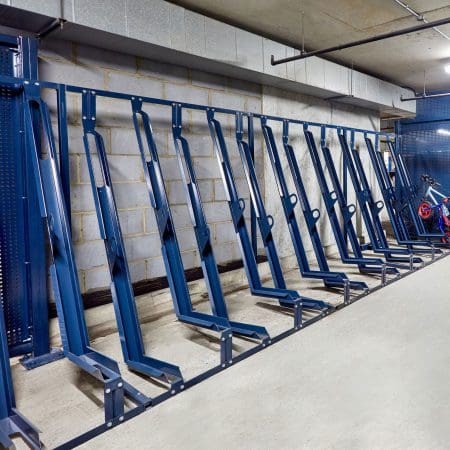

| Finish | Galvanised or powder-coated to any RAL |
| E‑Bike Version | Optional integrated charging dock |
| Warranty | 10 years |
| Quantity Pricing | Volume discounts for orders over 20+ units |
Applications
- Train stations and transport hubs
- Office & business premises
- Car parks and multi-use buildings
- Residential and student accommodation
- Schools, colleges & universities
Services & Support
- Free CAD layout planning & site survey
- UK-based manufacturing and delivery
- Optional full installation & proactive maintenance plans
- Expert advice for vertical bike rack freestanding arrangements
Ready to Specify?
Contact our team for a custom layout or to order directly if you have your quantity. We’re here to make specifying cycle infrastructure straightforward and spec-ready.
Frequently Asked Questions
Here are answers to common specification and installation questions regarding the Semi-Vertical Cycle Rack.
What is the advantage of a semi-vertical cycle rack?
Semi-vertical racks angle bicycles upward to reduce the horizontal footprint required per space. This allows higher parking density than traditional floor-mounted racks, without requiring the lifting effort of a two-tier system.
Where is the Semi-Vertical Cycle Rack typically specified?
It is commonly specified for apartment developments, office buildings, universities and secure cycle rooms where space efficiency is critical but full two-tier storage is not required.
How does this differ from a vertical or two-tier system?
Unlike full vertical systems, semi-vertical racks keep both wheels closer to the ground and are typically easier to manoeuvre. Compared to two-tier systems, they offer simplified operation while still improving overall capacity.
Can the racks be installed in linear runs?

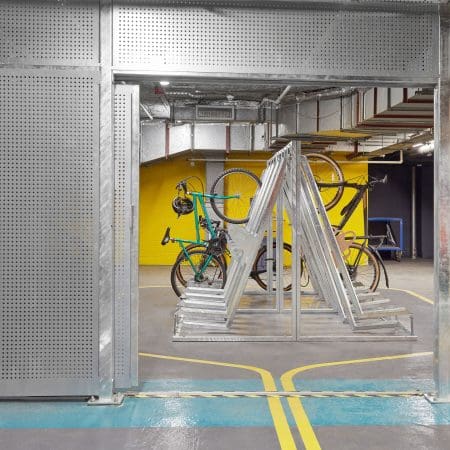

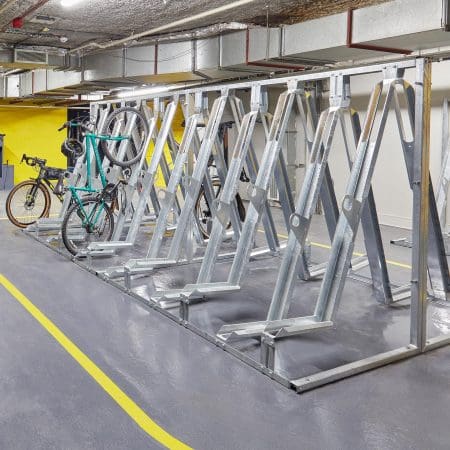

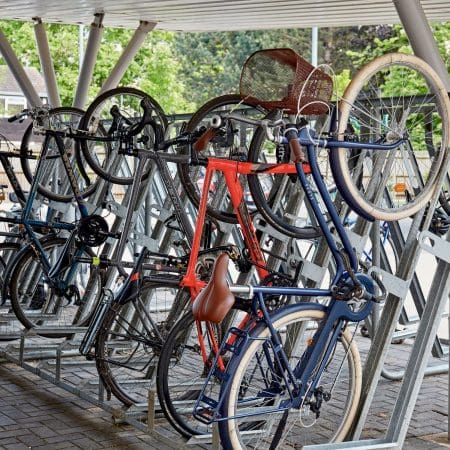

Yes. Semi-vertical racks are commonly installed in alternating or linear configurations to optimise spacing and circulation within bike rooms or sheltered compounds.
Does this support planning and active travel requirements?
Yes. By increasing parking density within a controlled footprint, the Semi-Vertical Cycle Rack helps developments meet required cycle parking quotas and active travel objectives set by local authorities.
What preparation is required before installation?
Installation requires fixing into a structurally suitable concrete slab or floor base. Technical drawings and spacing guidance are provided to ensure compliant layout planning and secure installation.
