Product Description

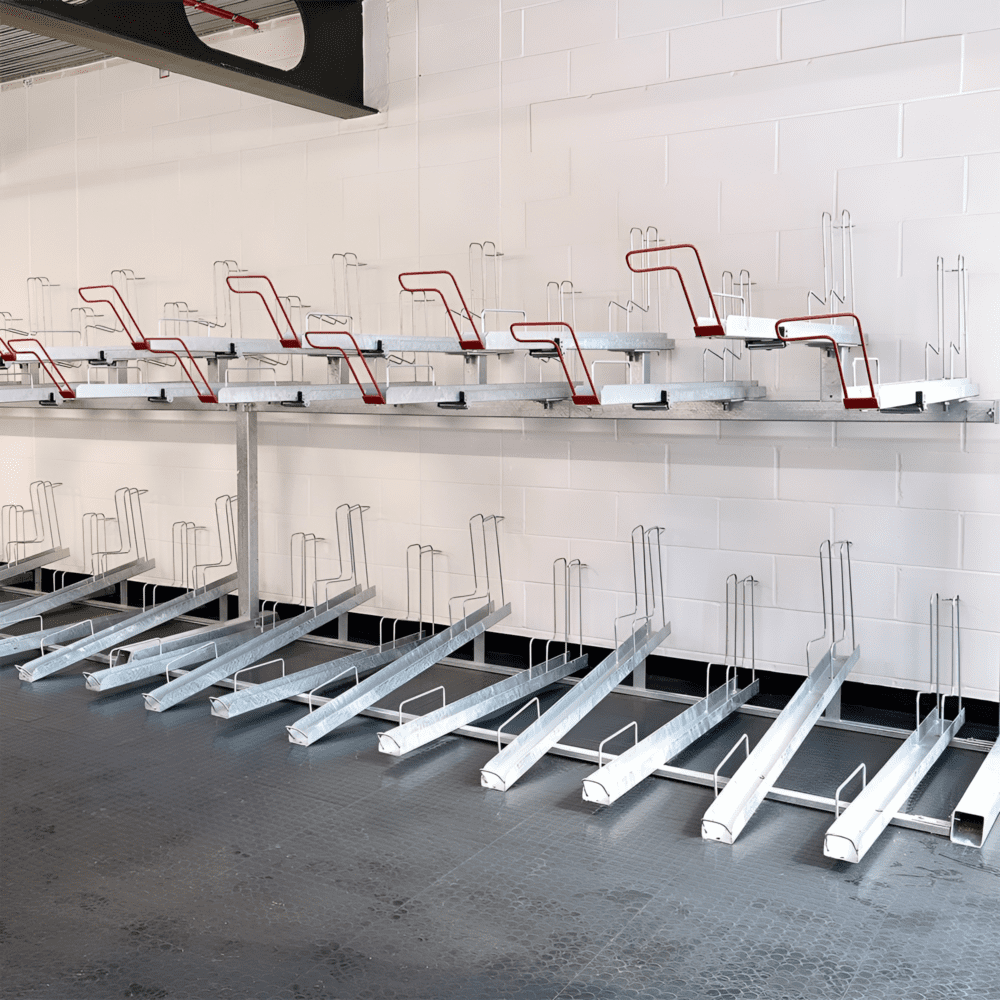

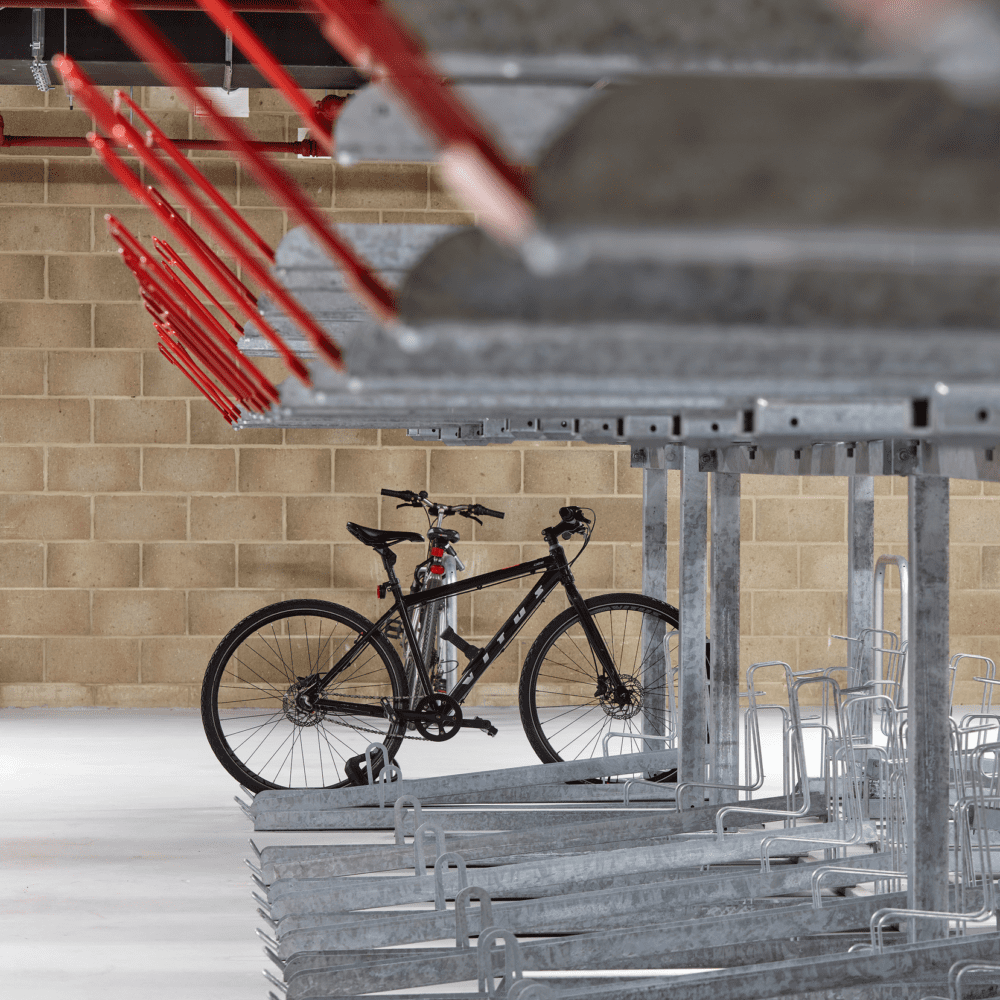

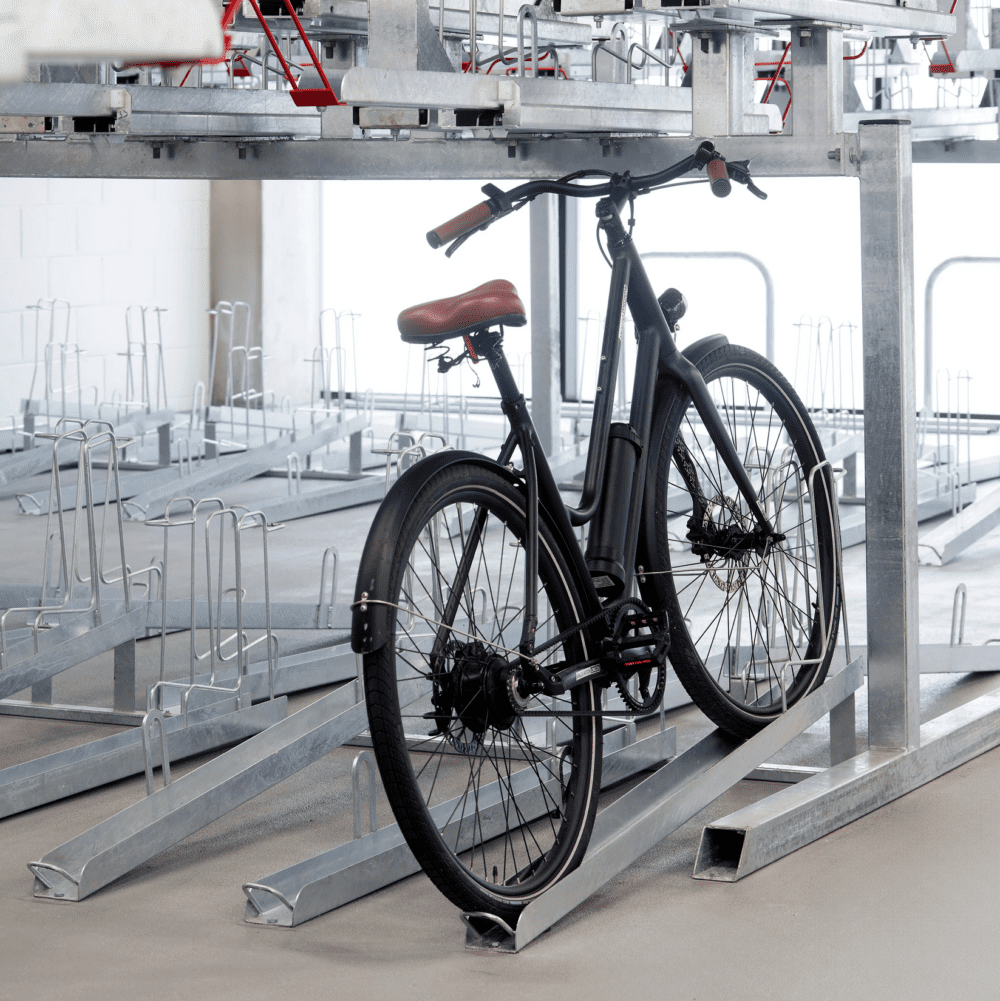

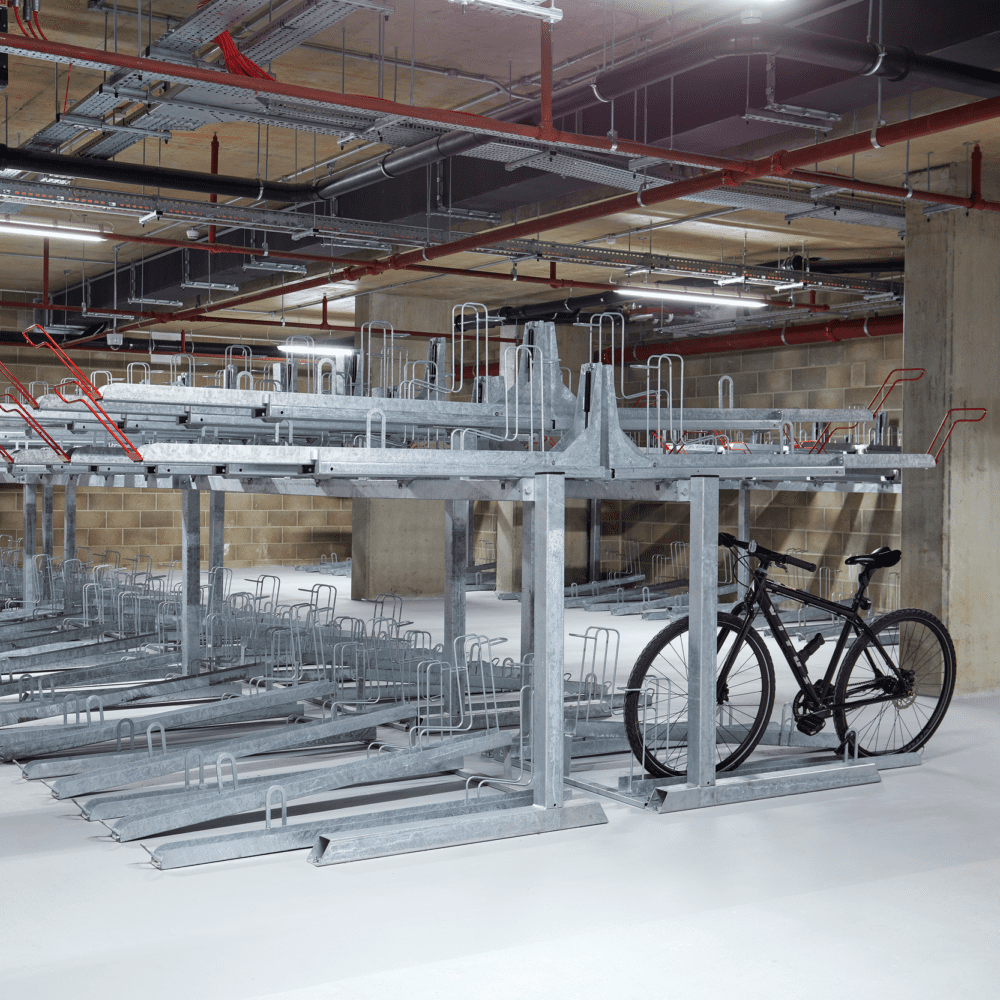

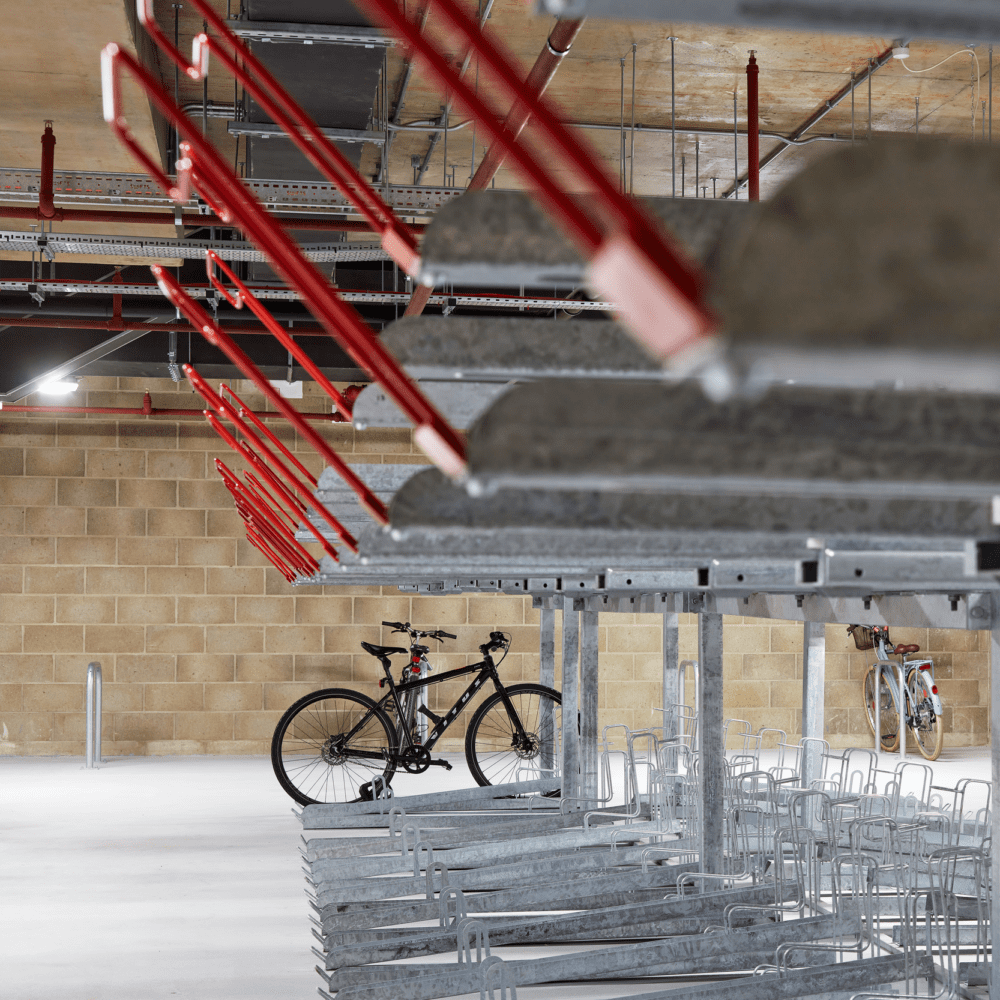

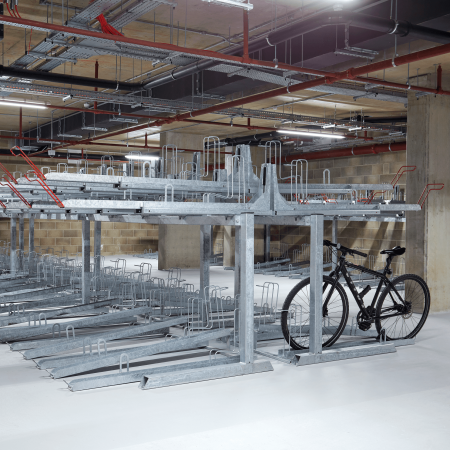

Two Tier Cycle Rack
The Two Tier Bike Rack is a high-density cycle parking solution that maximises capacity while maintaining ease of use. This rack enables cyclists to lock frames and wheels, which is ideal for train stations, universities, shopping centres, offices, and public realm schemes. Precisely engineered in Britain with gas-assisted sliding tiers, it’s BREEAM-compatible, modular, and backed by a 10-year warranty.
Applications
- Tran stations, bus &transport hubs
- University campuses & student accommodation
- Offices & business parks
- Shopping centres & commercial facilities
- Multi-storey car parks & corporate developments
Drawings
Dimensions: Minimum height required 2500mm (2400mm can be accommodated if required) x 1900mm depth (an additional loading space of 1300mm is required) x 375mm width centres, total width dependent on quantity ordered
Downloads & Spec Tools
Technical Specifications
| Specification | Details |
|---|---|
| Capacity | 2 bikes per frame (one upper, one lower) |
| Material | Hot-dip galvanised steel to BS EN ISO 1461:2022 |
| Height (min. ceiling) | 2500 mm |
| Rack Centres | 375 mm standard spacing, staggered tier layout |
| Tyre Width | Up to 65 mm supported |
| Configuration Options | Single-sided or back-to-back arrangements |
| Finish Options | Galvanised standard, optional powder coating to any RAL |

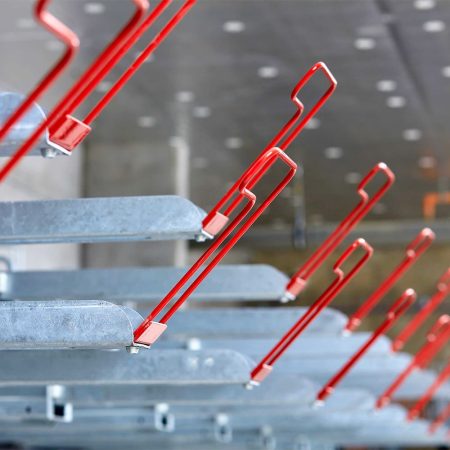

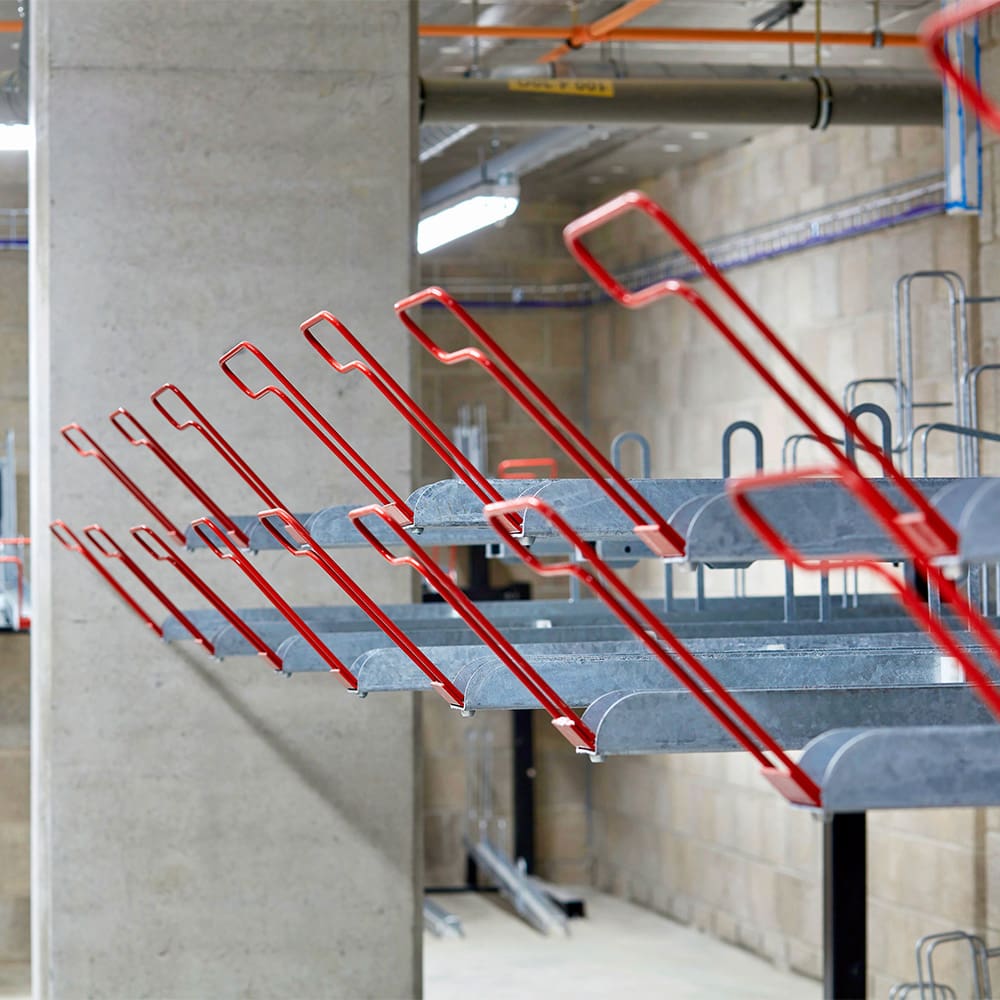

| Optional Extras | EasyGrip handles, gas-assisted mechanism, powder coating |
| Warranty | 10-year manufacturing warranty |
| BREEAM Compatibility | Yes |
| Installation | Installation is available nationwide but not required – supply-only orders are welcome |
Why It Works for Architects & Specifiers
Our Two Tier Bike Rack offers a compact, user-friendly alternative to single-tier racking or shelters. It integrates smoothly into built environments where vertical bike storage is needed, but canopy shelters aren’t required. With tangible space savings, operation simplicity, and robust security, it’s the top choice for efficient, scalable cycle infrastructure.
Ready to Specify?
Whether you need single racks or a whole shelter-based cycle storage area, our team is here to help you integrate space-efficient bicycle storage solutions hassle-free. Contact us today for layout, a quote, or to begin specifying.
Priced per cycle space.
Need a bike shelter to accompany this product? Explore our Two Tier Shelters & Gas Assisted Two Tier Racks
Frequently Asked Questions
Here are answers to common specification and installation questions regarding the Two Tier Cycle Rack.
What is the main advantage of a two tier cycle rack?
Two tier systems double the number of bicycles stored within a given footprint by utilising vertical space. This makes them ideal for developments where high parking capacity is required within constrained internal areas.
Are two tier racks easy to use?
Yes. Modern two tier systems are designed with assisted lifting mechanisms to improve usability. Gas-assisted or spring-assisted options may be specified to support smoother operation.
Where are two tier cycle racks typically specified?
They are commonly specified for apartment developments, office buildings, transport hubs and education campuses where maximum cycle capacity is required within defined bike rooms or sheltered compounds.
Does this system support planning compliance?
Yes. Two tier racks are widely accepted by local authorities as an effective way to meet required cycle parking numbers while maintaining compliant circulation and accessibility standards.
Can the racks be installed within shelters or enclosures?
Yes. Two tier racks are frequently installed within cycle shelters, security mesh enclosures and dedicated internal bike rooms as part of a complete cycle storage solution.
What preparation is required before installation?
Installation requires fixing into a structurally suitable concrete slab or floor base. Adequate ceiling height and circulation space must also be considered during layout planning. Technical drawings are provided to support compliant installation.
